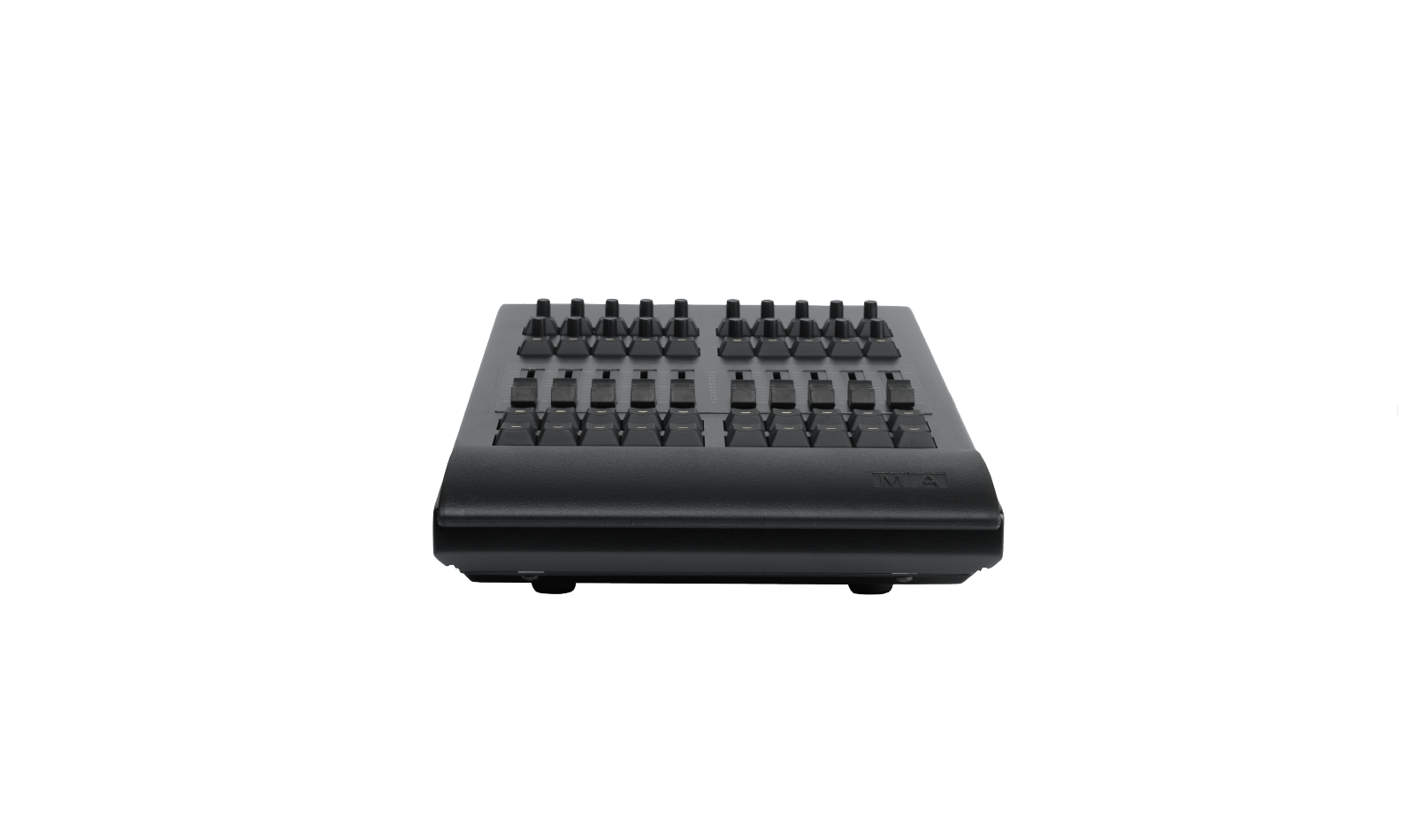

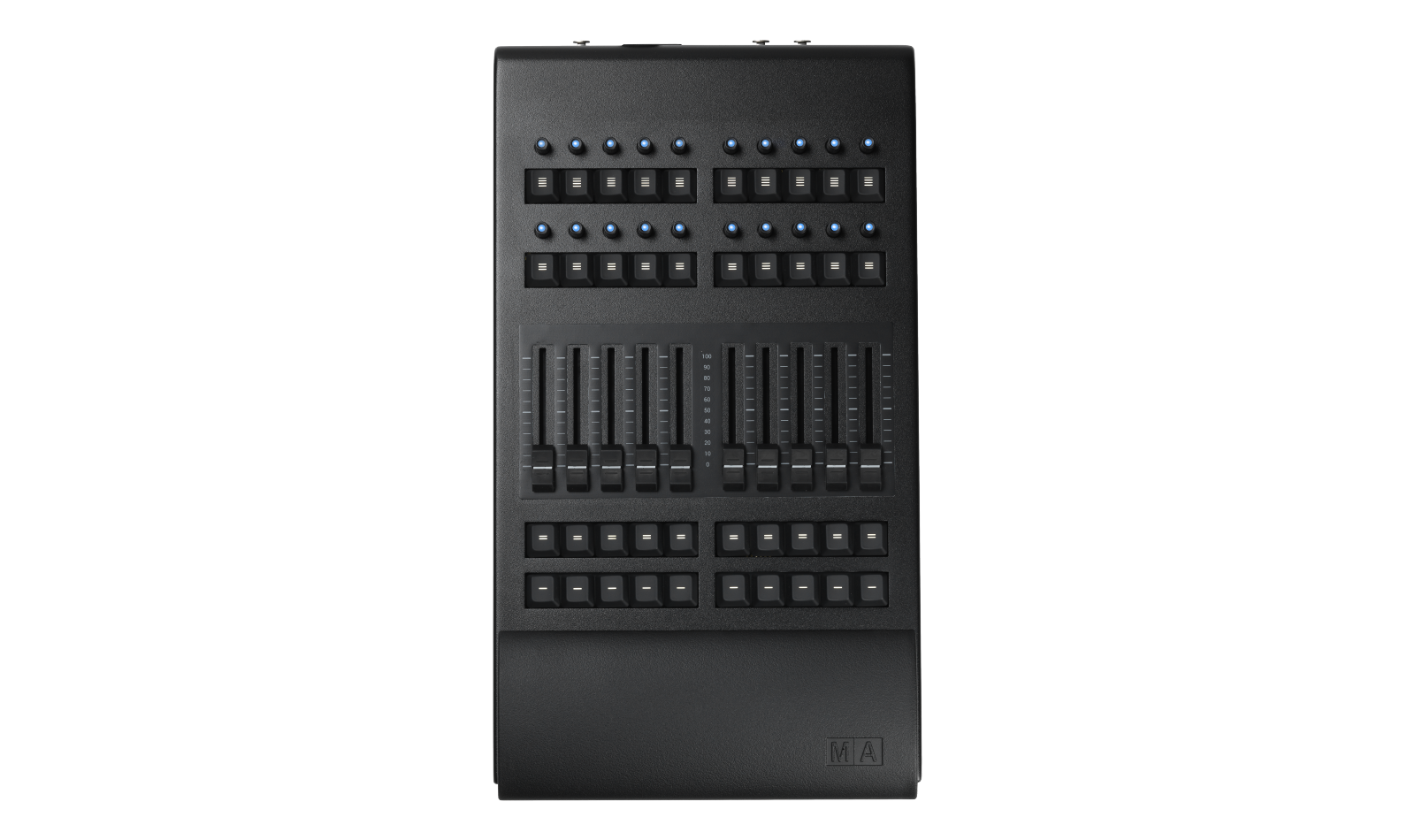

grandma3 onPC fader wing (4096)

Name: grandma3 onPC fader wing (4096)
Brand: MA Lighting

110101900

4096 parameters

Description Specification Brand information Downloads

The grandMA3 onPC fader wing is designed as the perfect hardware playback expansion to the grandMA3 onPC software. In combination with this free of charge software, the grandMA3 onPC fader wing offers the full playback capabilities and adds 4096 Parameters to the grandMA3 onPC parameter count.

Perfectly suited with 10 motorized faders and 20 rotary encoders the total of 40 playbacks are useful in any production that needs direct access to playbacks. The grandMA3 onPC fader wing can be combined with a grandMA3 onPC command wing or the grandMA3 onPC command wing XT. It expands both products with additional playback capabilities.

With a simple USB connection between the grandMA3 onPC fader wing and the computer running the grandMA3 onPC software, it offers two built-in DMX ports to send two additional DMX universes.

Features

Real-time control for 2 048 parameters in combination with grandMA3 onPC
Expandable up to 4 096 parameters with onPC products and grandMA3 onPC
2 DMX connectors
1 USB connector
20 rotary RGB backlit encoder
10 motorized 60 mm faders
40 separate playbacks
Individually backlit and dimmable silent (clickless) keys

Technical Specifications

Parameters 4096 (HTP/LTP)
Parameters Mode2 not applicable (no Mode2)
Operating voltage/ Supply voltage AC 100 - 240 V; 50/60 Hz
Power max. 50 VA
Operating Temperature 0 °C up to 40 °C / 32 °F up to 104 °F
Dimensions 240 x 427 x 102 mm / 10 x 17 x 4 in
(width x depth x height)
Net weight 5 kg / 11 lbs

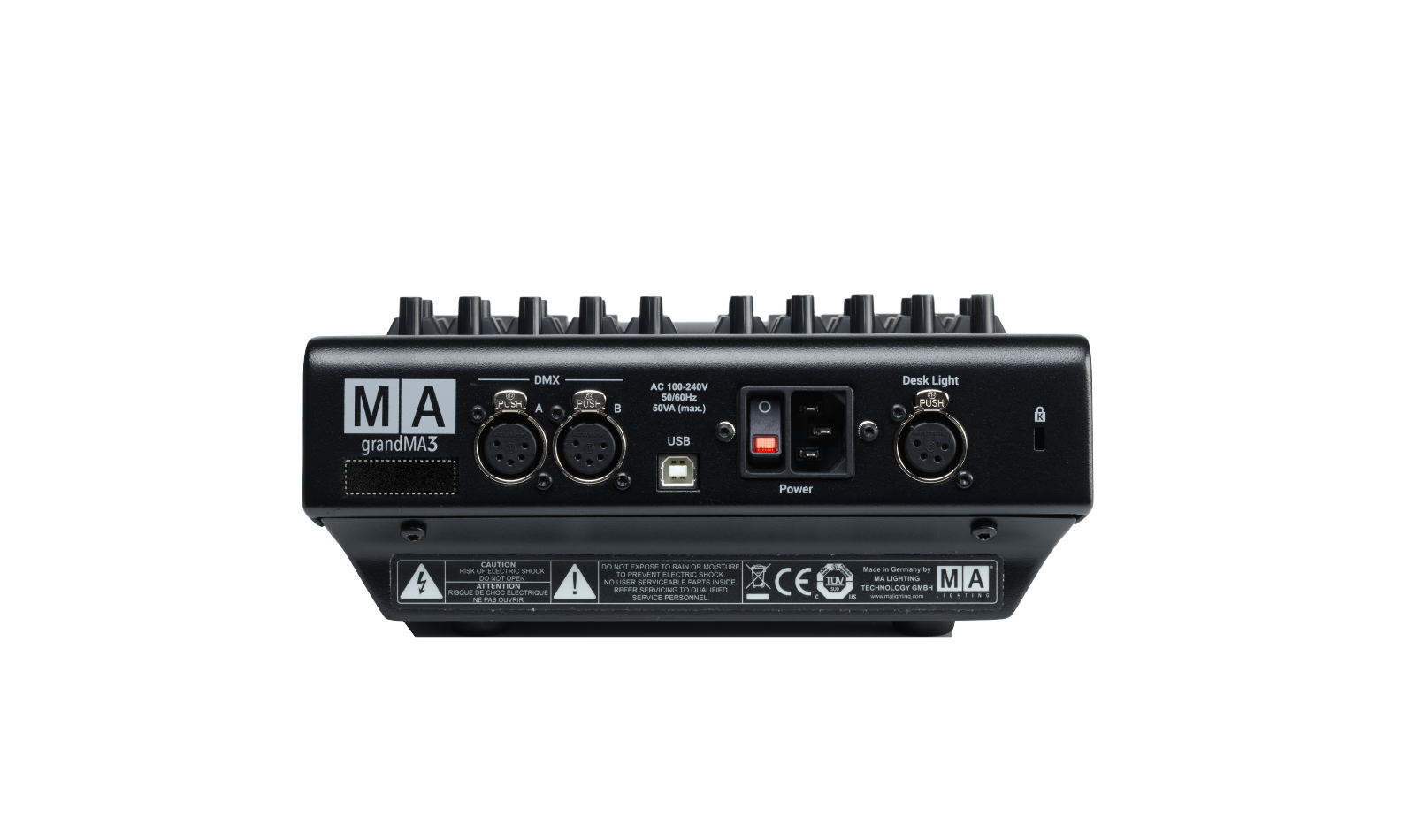

Connectors 1 x IEC-60320 C14 cord
2 x DMX512-A Out (5pin XLR female)
1 x USB 2.0 (type B)
1 x LED desk light (4pin XLR female)

Supplier SKU

4023575

Custom sticker

Available August 1st

MA Lighting

Two strong partners for your success
The leading international position of MA Lighting rests on two columns – MA Lighting Technology in Waldbuettelbrunn, the centre for production, research and development and MA Lighting International in Paderborn – the marketing, distribution and technical support hub. We are faithful to our motto “The whole is much bigger than the sum of its parts”. Our products are fully and individually developed, powerful and extremely competitive, but as a complete MA system, the aggregate MA components built a synergy that is absolutely unequalled on the market.

Products that set the standard
Since its foundation in 1983, MA Lighting has expanded to become an international leader for computer-controlled lighting consoles and networking components. This success is based on solid reasons: With its commitment and power to innovate, MA Lighting meets the growing demands of a constantly changing industry and develops product solutions for tomorrow.
