ControlGO Portable DMX Controller, RDM manager,

CRMX

ControlGO Portable DMX Controller, RDM manager,

Name: ControlGO Portable DMX Controller, RDM manager,
Brand: Prolights

530349000

1 universe - CRMX and battery operated DMX-contoler

Description Specification Brand information Downloads

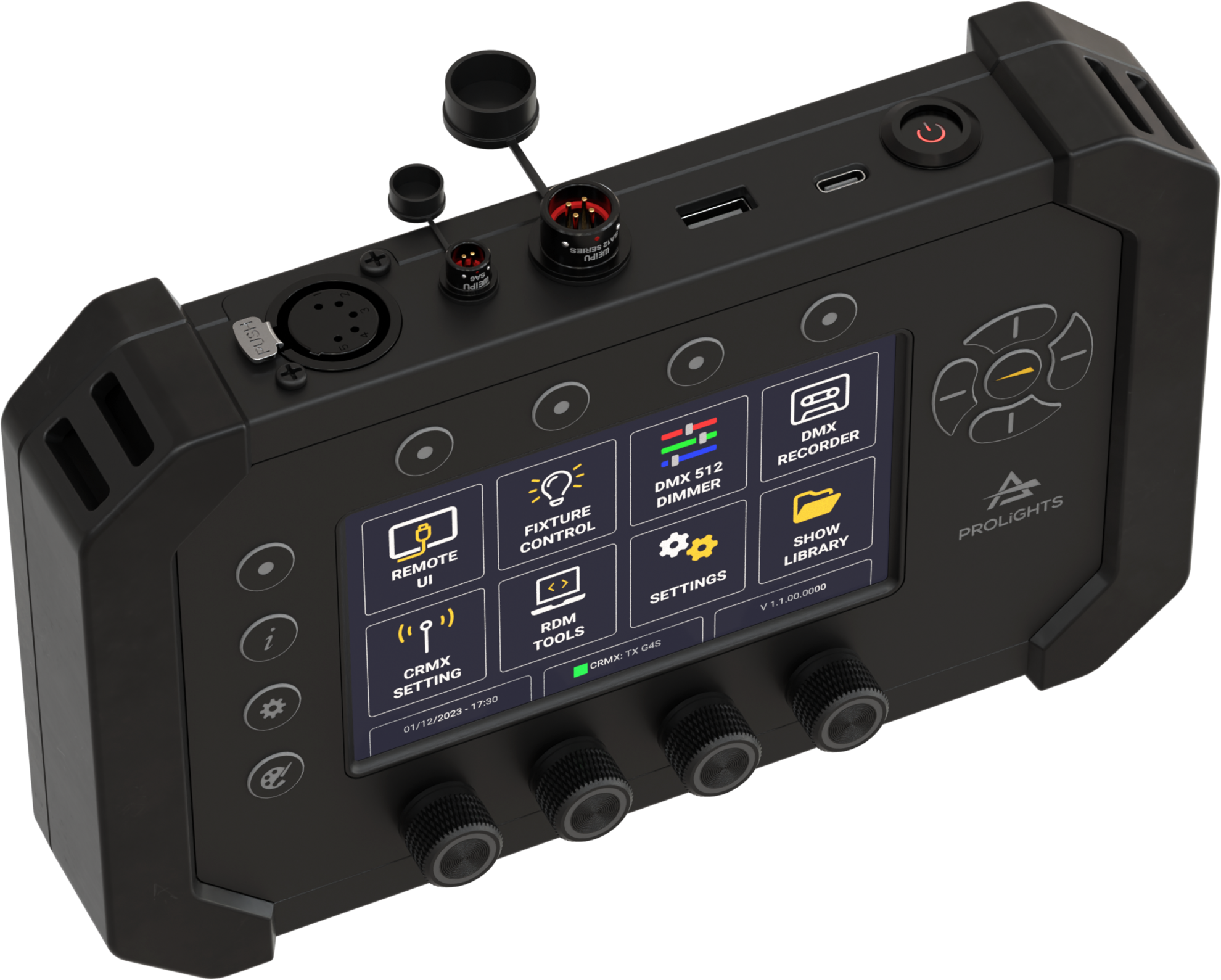

ControlGo is the ultimately flexible, multi functional lighting controller. This incredibly versatile, simple to use tool combines a fixture remote, RDM Tool, CRMX transmitter, DMX controller and DMX recorder into a single, portable and durable device.

Whether flashing out a film set, setting addresses on a tradeshow stand, or controlling battery uplighters, the ControlGO is THE device you need to get up and running quickly and easily.

Taking power from a host of options - NP-F or V-Lock batteries, DC 12-48V or USB-C - you won't find a place you cant find some power.

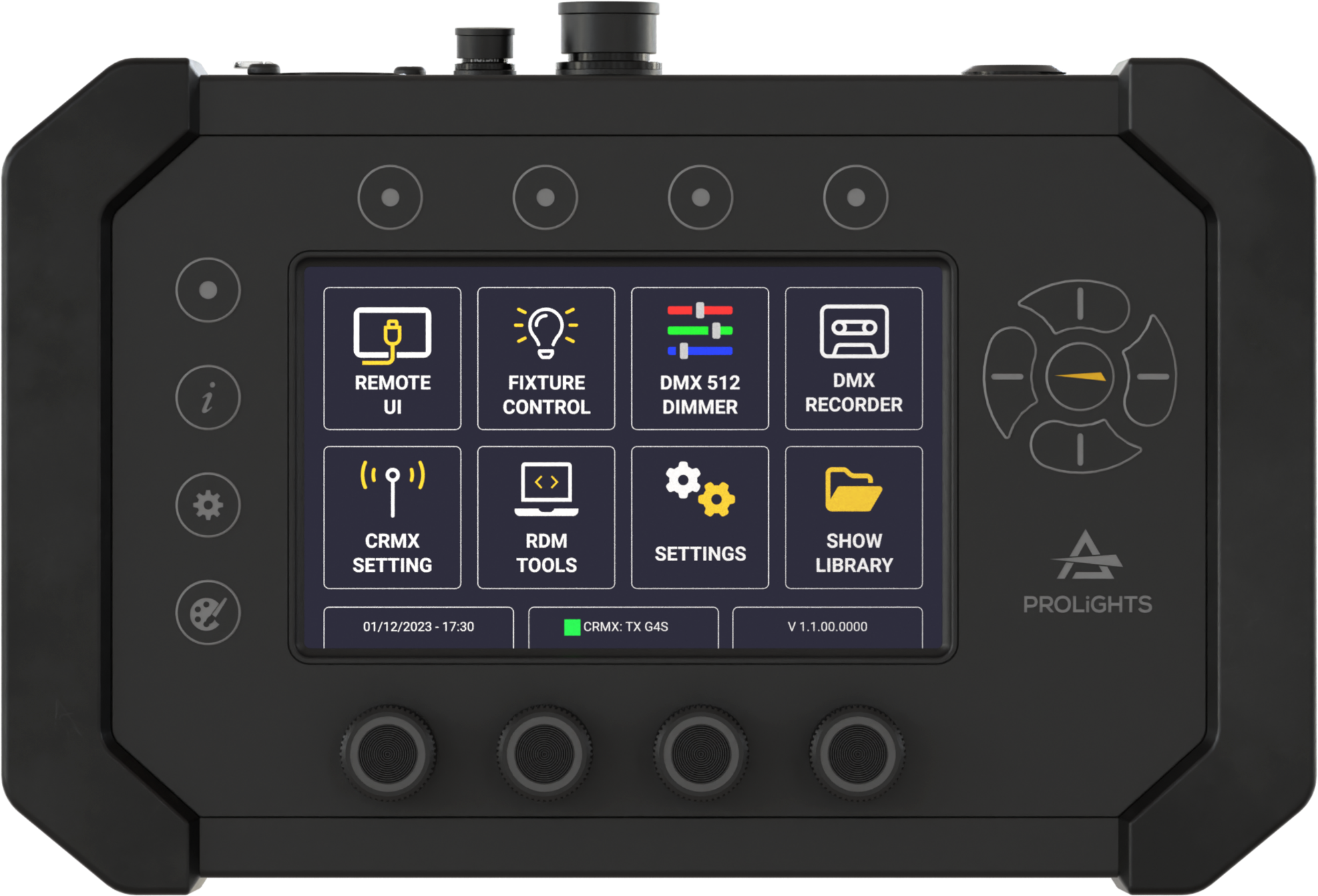

Featuring wired and CRMX wireless DMX & RDM, the ControlGO is compatible with up to 42 fixtures of any brand over 1 Universe. Its intuitive touchscreen interface, plus physical buttons and encoders, gives fast, easy and accurate access to its functions.

From Film sets to events … Lights, Control, Go!

Visit: www.controlgo.it

Technical Specifications

BODY

Hardware on-board: see available accessories
Body: sturdy policarbonate body
Body colour: black

CONTROL

Protocols: CRMX+W-DMX, DMX512, RDM
DMX channels: 512 channel
Wireless Control:included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth capable
RDM: RDM for remote monitoring and settings
Display: 5" Touch LCD
Firmware upgrade: yes,via USB pen drive, onboard memory or DMX interface (UPBOXPRO/UPBOX1) not included
Other: 4 rotary push-encoders with RGB backlight

ELECTRICAL

Low Voltage DC mains: 12-48V via DC IN, 48V via Remote Connector, 5-9-12-20V via PD3.0 over USB-C, 7.2V via battery slots
Max power consumption: 8W

BATTERY

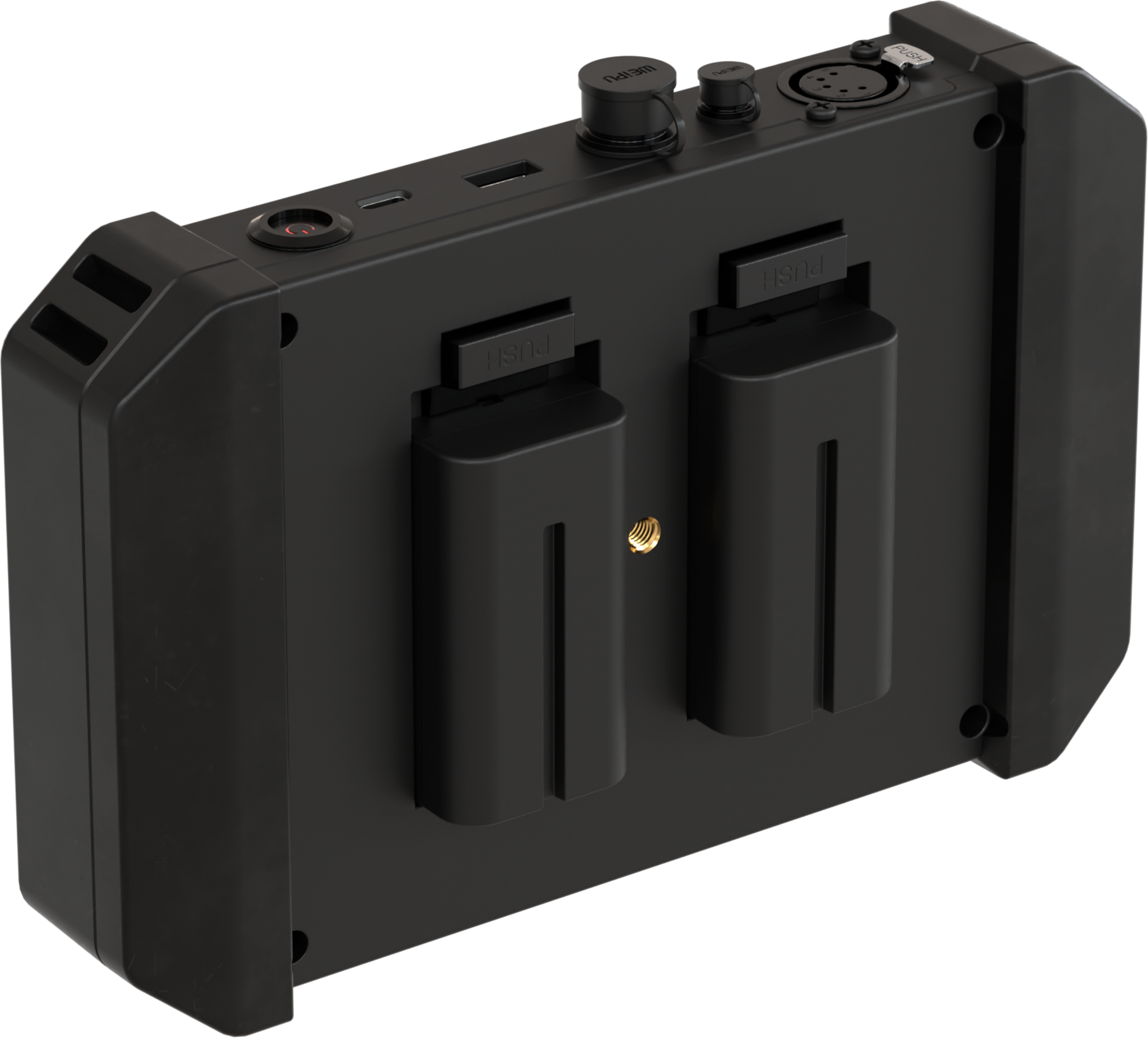

Battery: 7.2V NP-F550/F570/F750/F770/F960/F970 type battery or V-Mounts (14.4V) via dedicated accessory

PHYSICAL

IP rating: 20
Cooling:passive cooling and fan-free
Signal connection: Seetronic XLR 5p OUT connector
Low Voltage DC connector: Weipu SA6(12-48V), Weipu SA12 (48V - RemoteConnector), USB type C PD3.0, Battery slots
Weight: 0.6 kg

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, RCM, FCC, cTUVus

BOX CONTENT

1 x CONTROLGO
1 x CTRGEVACASE
2 x CTRGHANDLE
1 x CTRGNL
1 x User manual

Supplier SKU

CONTROLGO

Control sticker

CRMX

Prolights

PROLIGHTS is the professional lighting division of Music & Lights S.r.l., an Italian company specialized in the manufacture of technologies for the show industry.

The PROLIGHTS brand was established in 2001 with a focus on the design and manufacture of professional lighting & video products for the entertainment, event, broadcast and installation markets.

PROLIGHTS is headquartered in Minturno, Italy, where the companies commerical, operational and R&D centres are all located.

PROLIGHTS continues to experience a sustained growth across all sectors, with its products found on stages and in studios all over the world. Founder Franco Sorabella, and his son Fabio, are both actively involved in the day-to-day running of the business and in the development of the product range.

http://www.prolights.it
