ARENACOB 4FC - IP65 Light array fixture

Name: ARENACOB 4FC - IP65 Light array fixture
Brand: Prolights

530020400

Light array fixture, 4x75W RGBW, 24°, IP65, 229W, 7,9 kg

Description Specification Brand information Downloads

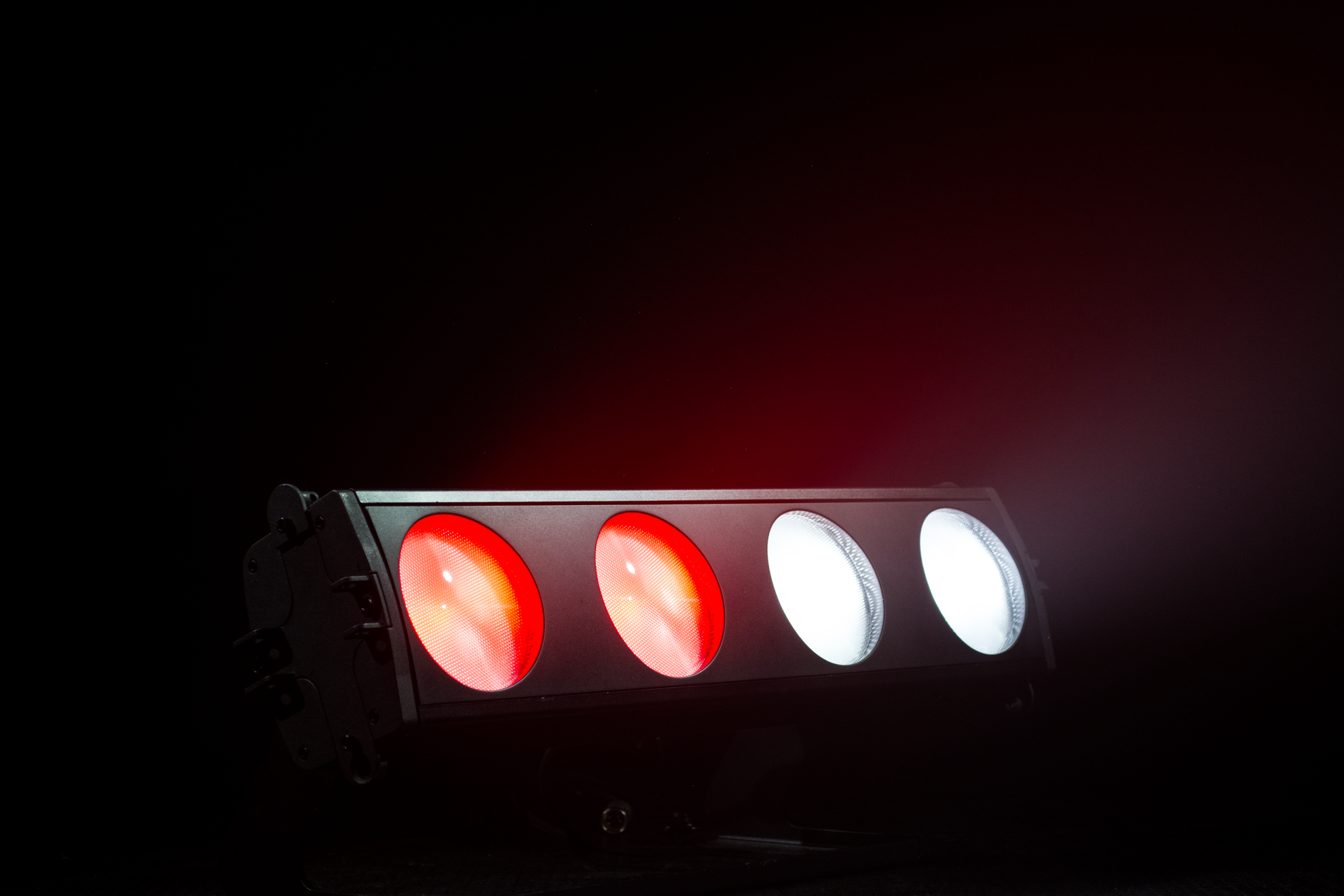

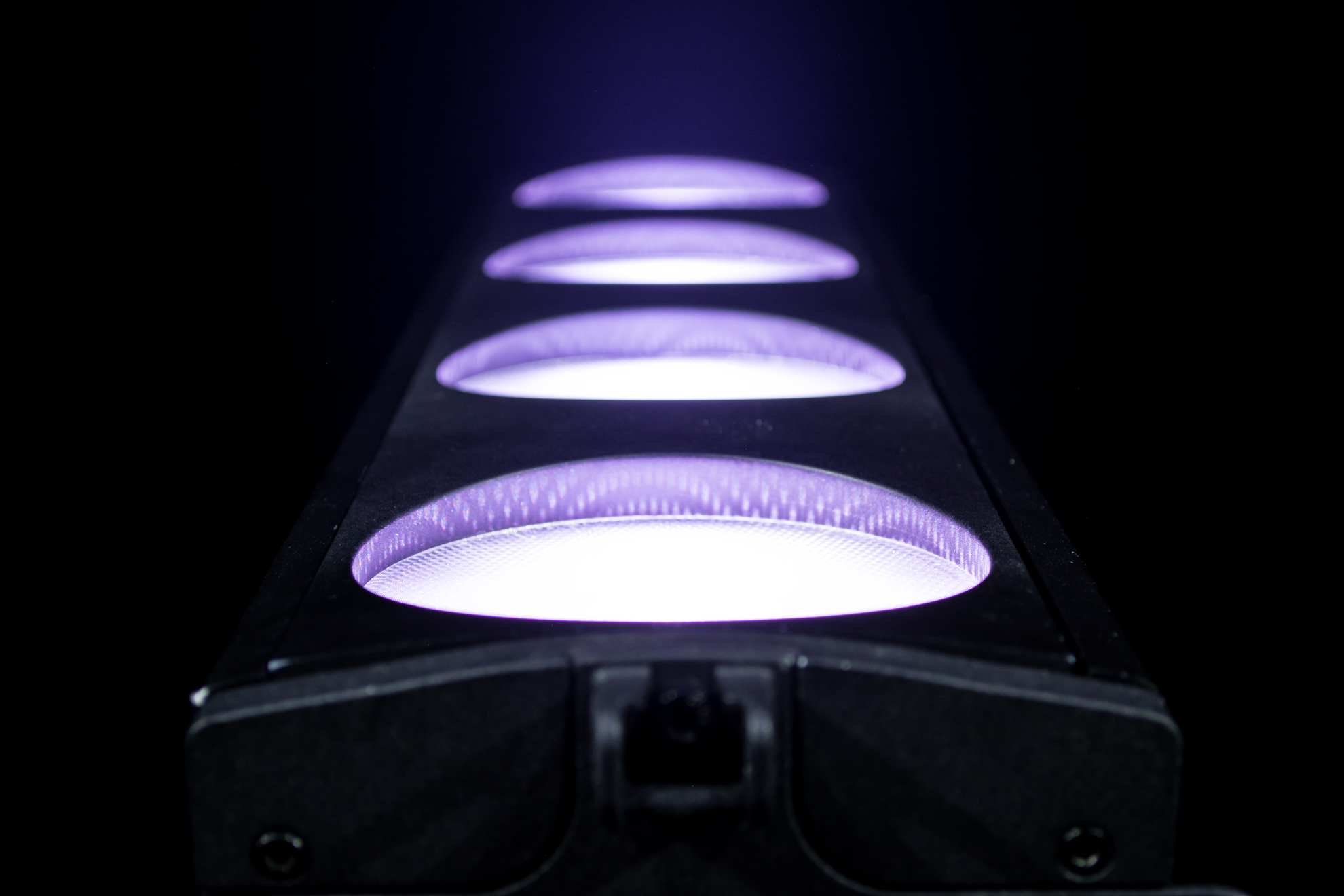

ArenaCob 4FC is a full colour LED replacement for a traditional 4 cell DWE blinder. Each of the individually controllable 75 W RGBW cells deliver a consistent, powerful punch that has been designed to perform in even the largest environments.

Technical Specifications

LIGHT SOURCE

Source: 4x75W RGBW LEDs
Luminous flux: (24°) 5'393 lm - (40°) 6.260lm
Lux: (24°) 2'413lx @3 m full
Lux: (40°) 891lx
Source life expectancy: > 50.000 h

OPTICS

Beam angle: (inc) 24° - (opt) 40°
Field angle: 46°
Pixel pitch: 150mm
Lens diameter: 100mm
Lens type: parabolic reflector in combination with HD fresnel lens

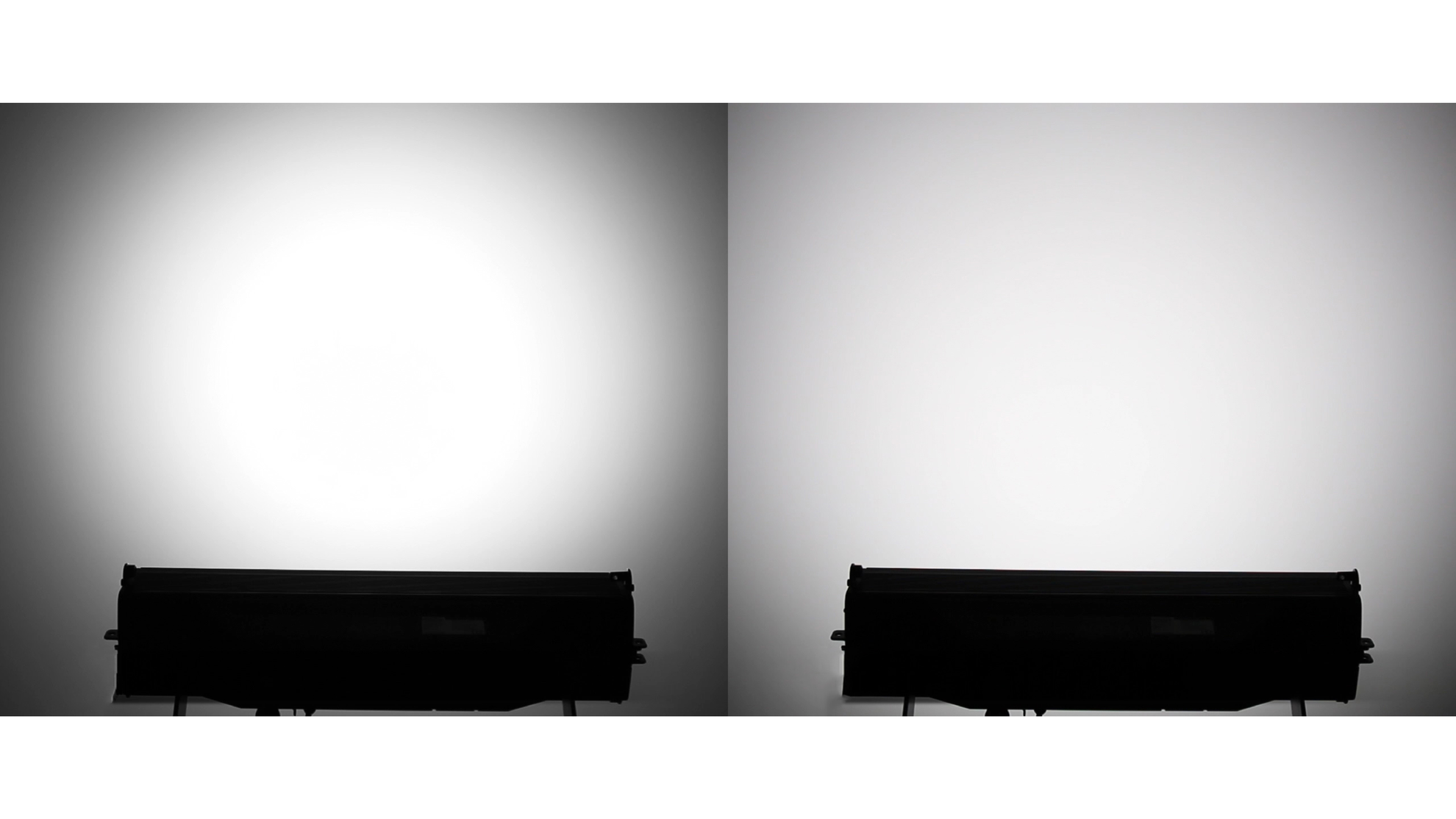

Additional optics: 40°(opt) - 32° without magnetic lens
Other: magnetic replacement of front lens

COLOUR SYSTEM

Colour mixing: RGBW / FC
CCT: CCT control through dedicated DMX channel
White presets: 2.000 K ~ 8.000K
Colour wheel: virtual colour wheel with macros

DYNAMIC EFFECTS

Pixel patterns: pre-programmed dynamic and static patterns
FX generator: adjustable foreground/background colour, index, speed, direction
Static mode: selection of static colour
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
Special features: HALO DWE dimming and amber-shift simulation

BODY

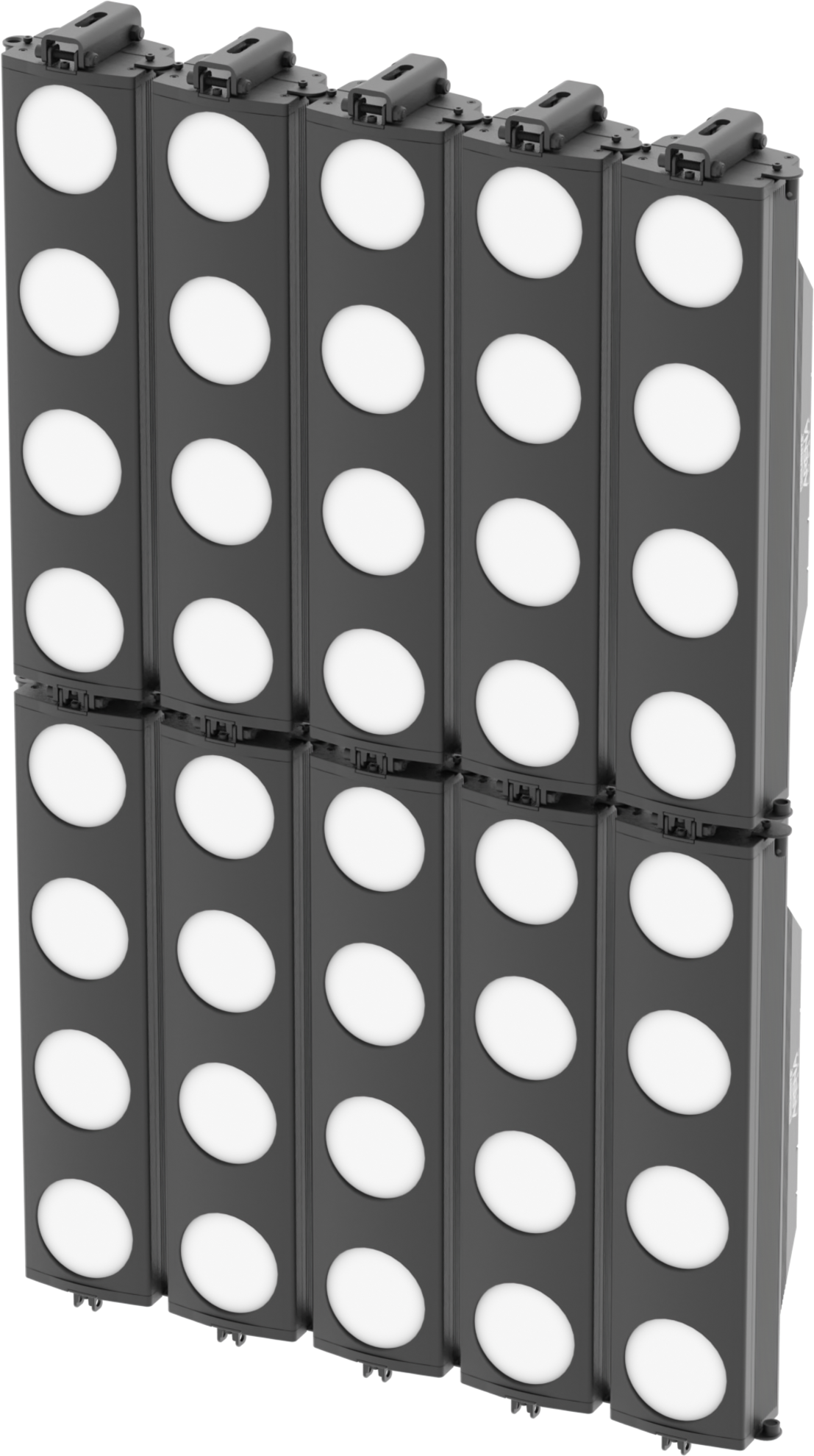

Hardware on-board: on board mechanics for modular assembly of multiple fixtures
Body: sturdy die-cast aluminium body
Body colour: black

CONTROL

Protocols: DMX512, RDM
DMX channels: HALO 1 / 4 channel - STD 4 / 6 / 15 channel - EXT 16 / 21 / 27channel
Pixel control: pixel2pixel control
RDM: RDM for remote monitoring and settings
Display: black OLED touch display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 28 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -20° ~ +45°
LED Control: flicker free operation

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 227W
Max power consumption (at 120V): 230W
Output (at 230V): 16 units on a single power line
Output (at 120V): 8 units on a single power line

PHYSICAL

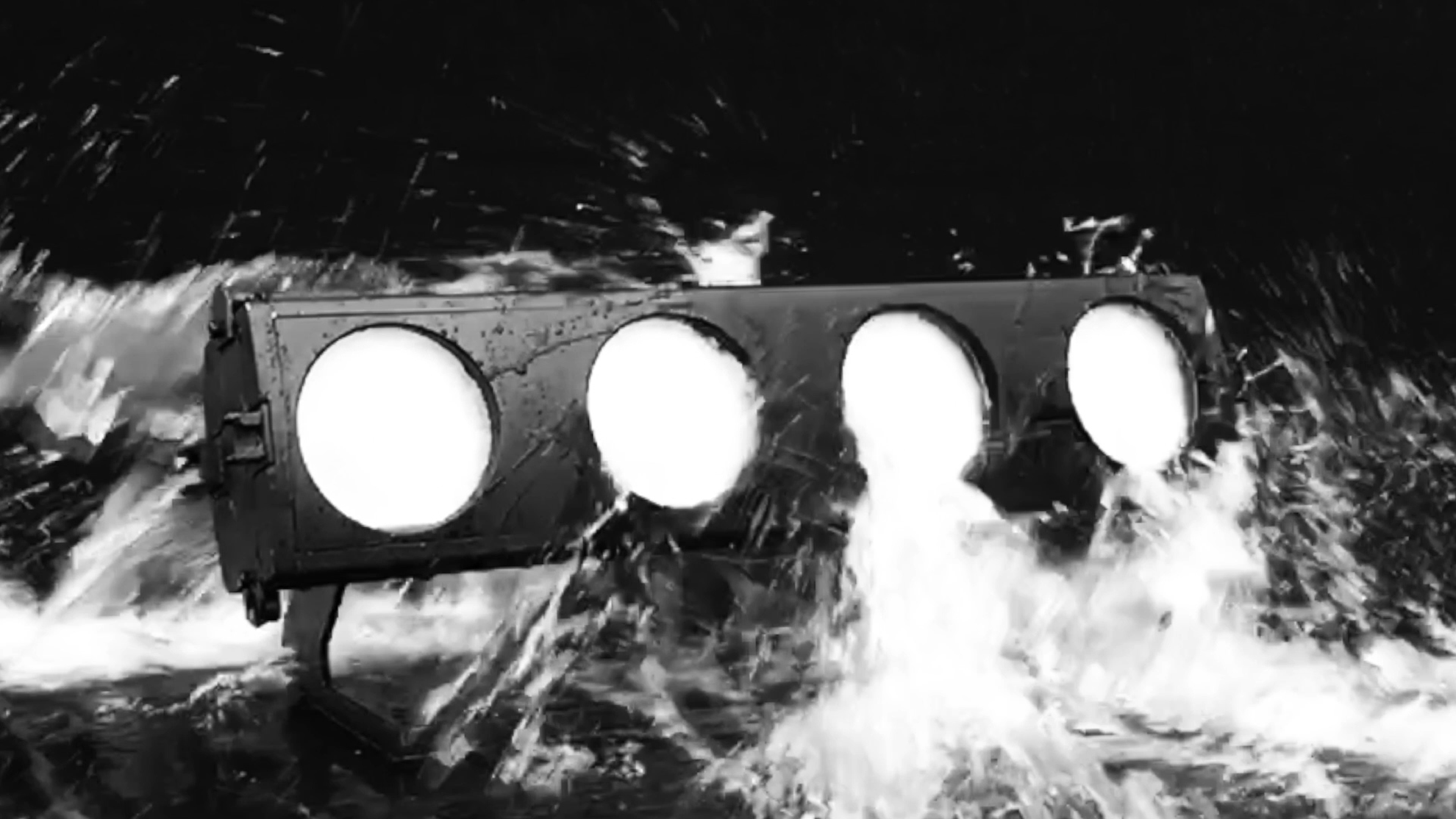

IP rating: 65 for temporary outdoor application, not for fixed installation
Cooling: passive cooling and fan-free

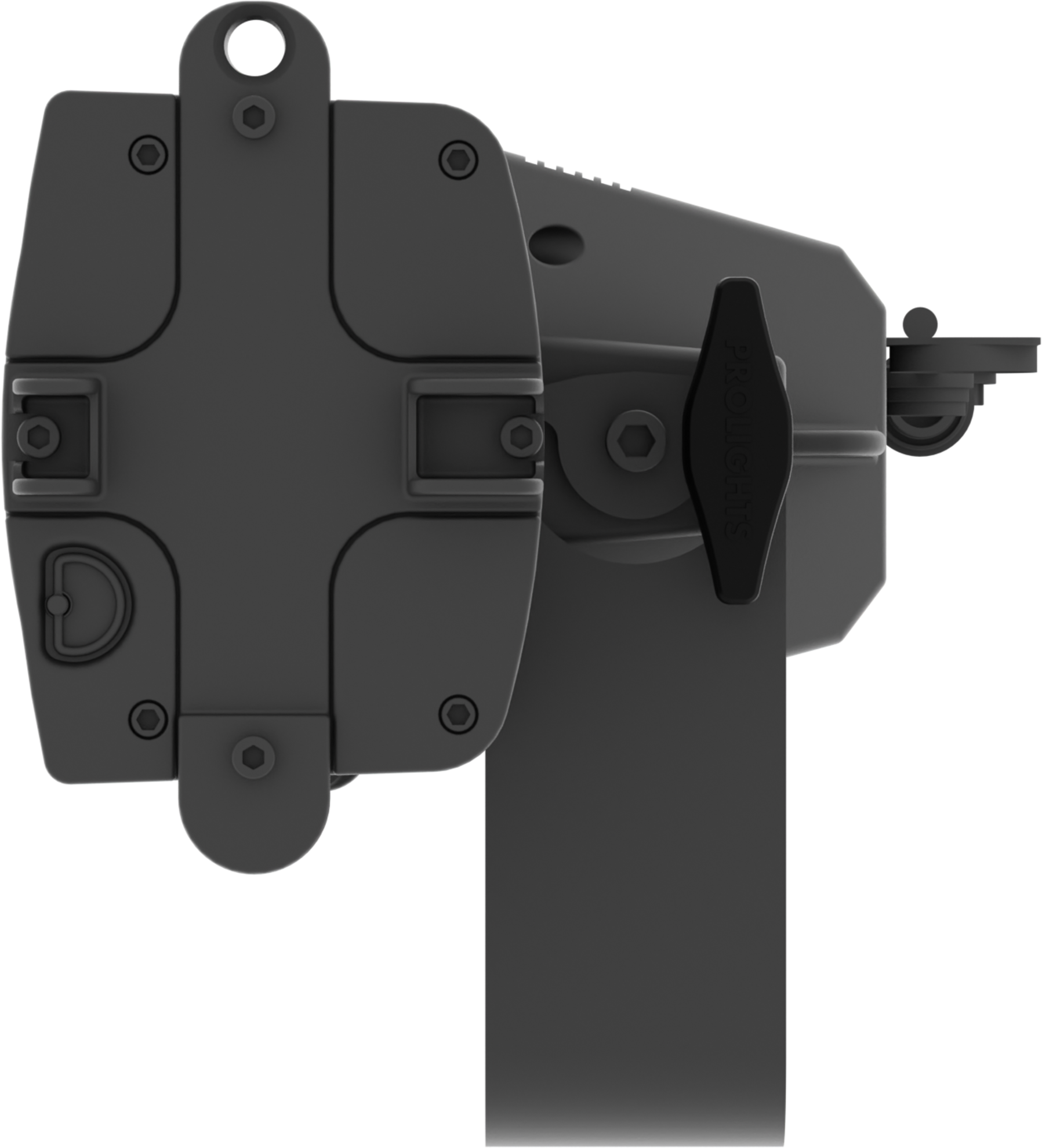

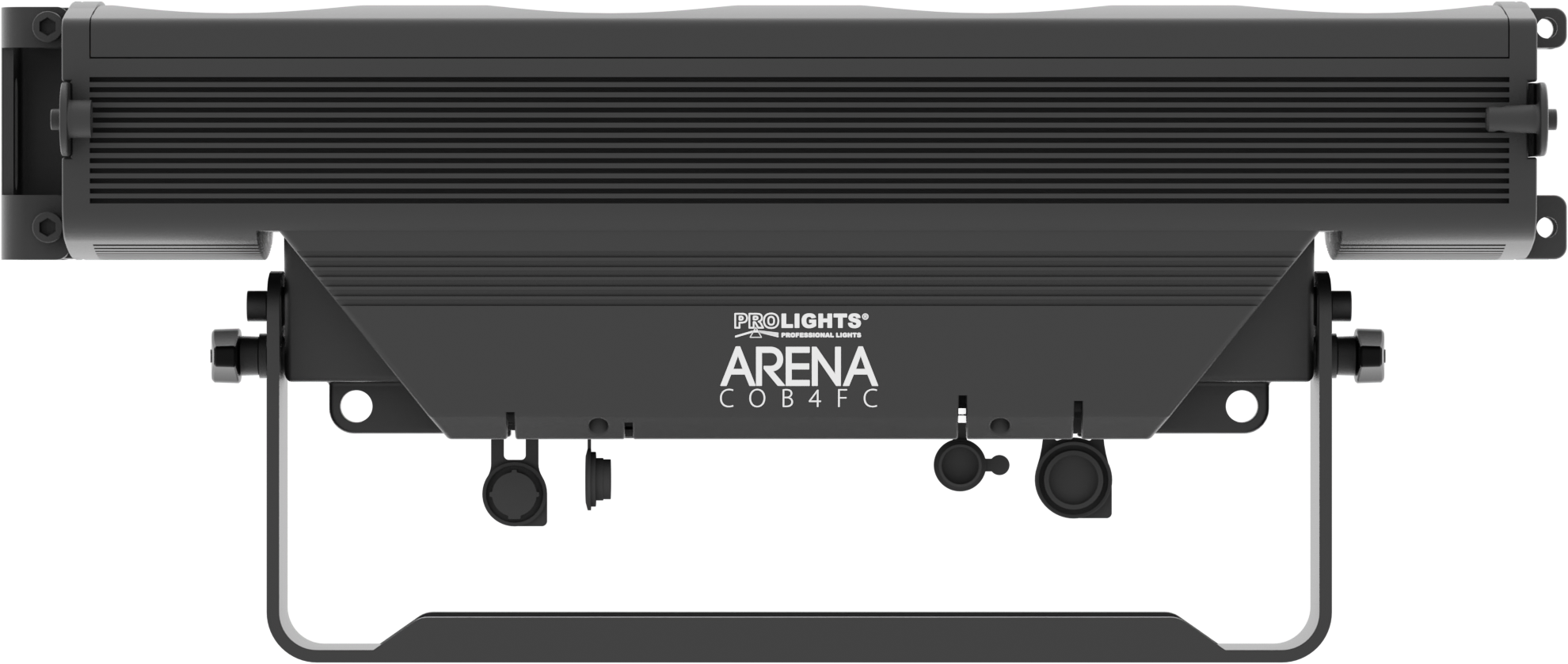

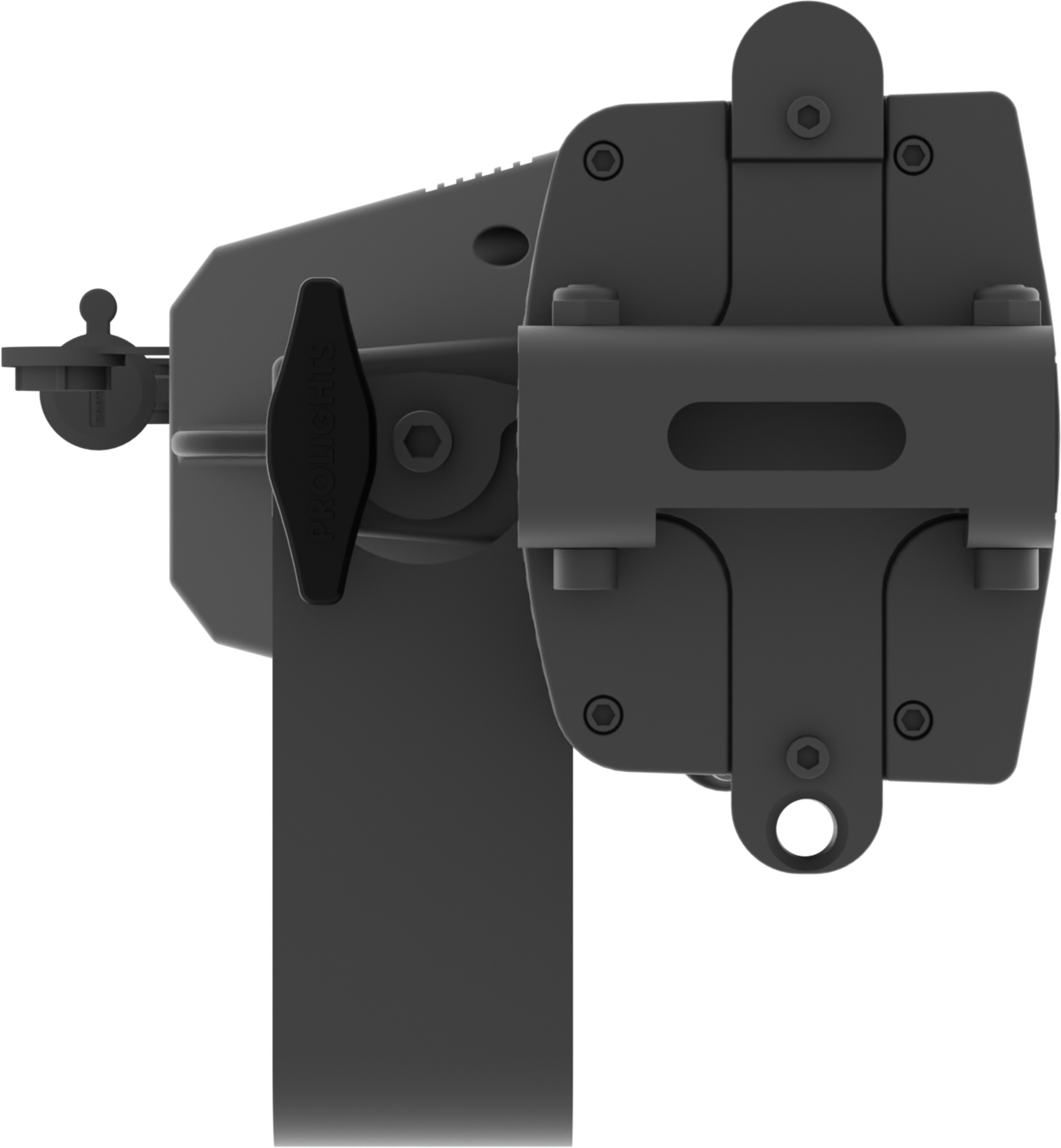

Suspension and fixing: bracket for hanging and positioning

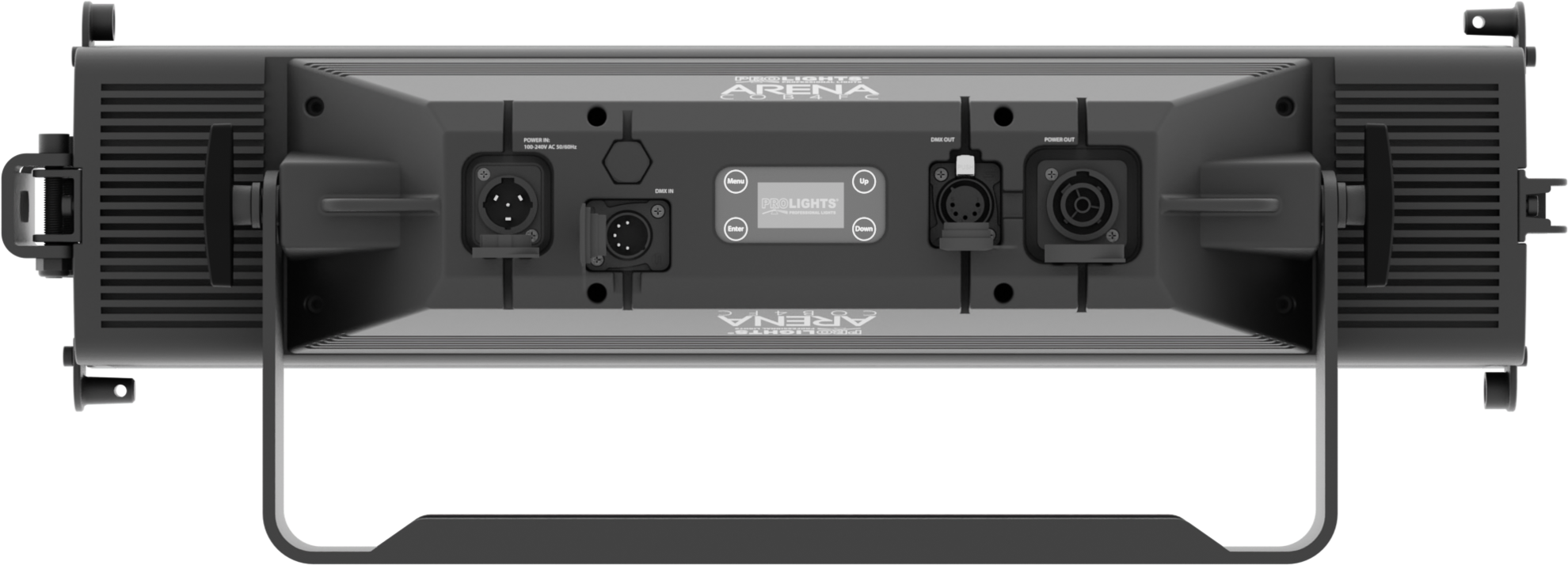

Signal connection: Seetronic XLR 5p IN/OUT connectors
Power connection: Seetronic powerCON waterproof IN/OUT connectors
Dimensions (WxHxD): 619x167x264mm
Weight: 8kg
