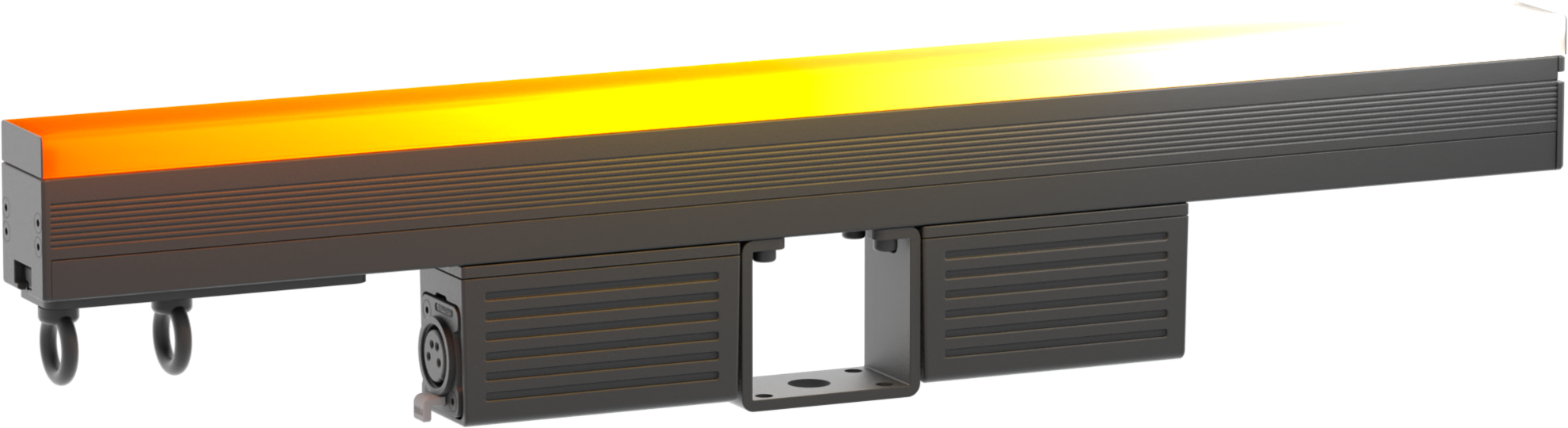

DIGISTRIP IP 50 - Pixel-map LED bar L.50cm

DIGISTRIP IP 50 - Pixel-map LED bar L.50cm

Name: DIGISTRIP IP 50 - Pixel-map LED bar L.50cm
Brand: Prolights

530201300

Pixel-map LED bar, 50x0.25W LED RGB/FC, ArtNet 150ch, IP65,

Description Specification Brand information Downloads

DigiStrip IP50 is a linear LED 10 mm pixel pitch video fixture for the rental market with an extensive range of optical accessories for a wide variety of looks (black and white included, transparent on demand). Each 50 cm long strip features 50 RGB / FC LEDs with individual pixel control and a 100° viewing angle. The mechanics of DigiStrip IP50 have been studied to grant greater mounting flexibility by adding sliding hardware on the back for truss application and on the side for multiple vertical linking. The external control unit DigiDriver IP is compatible with Art-Net and Kling-Net protocol and runs both signal and power over a 4 pole cable that provides greater stability and connection in a daisy chain (up to 40 DigiStrip IP50).

Technical Specifications

LIGHT SOURCE

Source: 50x0,25W RGB LEDs
Luminous flux: without cover: 341 lm - black cover: 45 lm - flat white cover: 173 lm - dome white cover: 220lm @full
Lux: without cover: 5 lx - black cover: 1 lx - flat white cover: 2 lx - dome white cover: 1lx @5 m full
Other: view angle 100° - driver chip MBI 5043
Source life expectancy: > 50.000 h

OPTICS

Pixel pitch: 10mm
Additional optics: black cover and white dome cover (included)
Other: flat white cover (included)

COLOUR SYSTEM

Colour mixing: RGB / FC

BODY

Hardware on-board: on board mechanics for modular assembly of multiple fixtures
Body: sturdy aluminum profile
Body colour: white optic and body black

CONTROL

Control units: 40 pcs power & signal under 1 pc DIGIDRIVERIP
Art-Net channels: 150ch
Protocols: Art-Net, Kling-Net, sACN
Pixel control: pixel2pixel control

ELECTRICAL

Mains power supply: DC 48V
Max power consumption: 12,5W

PHYSICAL

IP rating: 65 for temporary outdoor application, not for fixed installation
Suspension and fixing: bracket for truss rigging and hardware for connection of more units

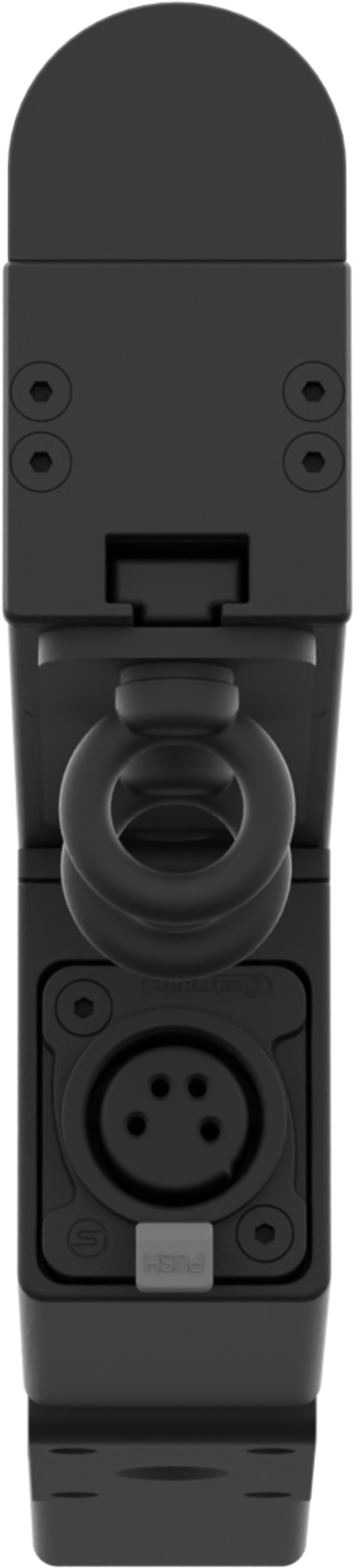

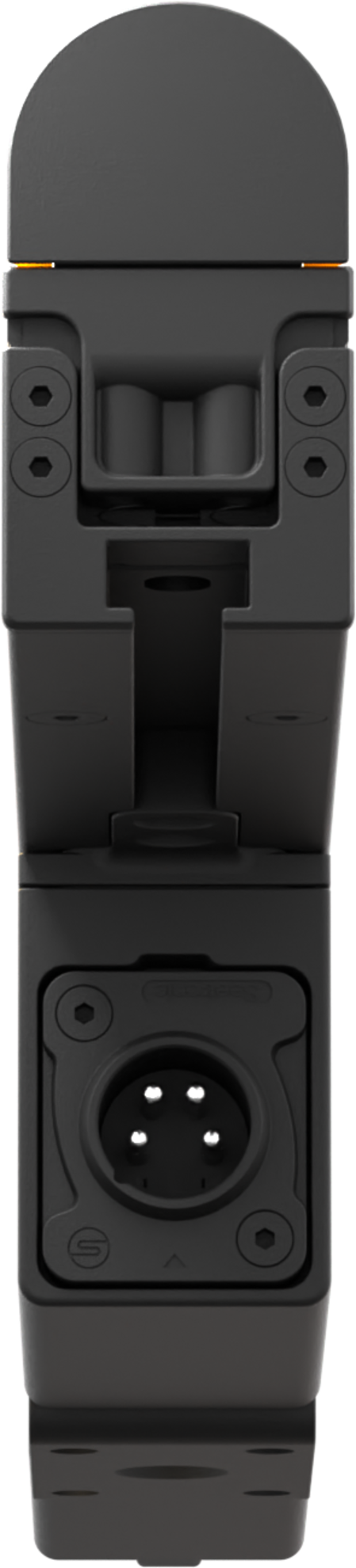

Signal connection: Seetronic XLR 4p IN/OUT connectors
Dimensions (WxHxD): 500x33x114mm
Weight: 1,35kg

Supplier SKU

DIGISTRIPIP50

Prolights

PROLIGHTS is the professional lighting division of Music & Lights S.r.l., an Italian company specialized in the manufacture of technologies for the show industry.

The PROLIGHTS brand was established in 2001 with a focus on the design and manufacture of professional lighting & video products for the entertainment, event, broadcast and installation markets.

PROLIGHTS is headquartered in Minturno, Italy, where the companies commerical, operational and R&D centres are all located.

PROLIGHTS continues to experience a sustained growth across all sectors, with its products found on stages and in studios all over the world. Founder Franco Sorabella, and his son Fabio, are both actively involved in the day-to-day running of the business and in the development of the product range.

http://www.prolights.it/
