Gallery Wash DAT VW

Compact LED wall wash with 60W LED VariableWhite

Housing Colors

Please select variant!

Description Specification Brand information Downloads

Gallery WashDAT

is a compact and efficient LED wallwash luminaire, purpose-designed for precise, uniform

illumination of walls, exhibits, and shelving in galleries, events, and venues.
Its advanced optical system combines a custom linear LED source with an asymmetrical reflector, significantly

reducing the required number of fixtures by enabling greater spacing without compromising visual comfort or

uniformity.
The Gallery WashDAT VW variant includes a 60W variable white LED source, providing adjustable color

temperatures ranging smoothly from warm 2'700K to cool 5'600K. This model excels in applications requiring

precise white-light control to enhance visual clarity and ambiance.
Control flexibility is assured through integrated RDM, DMX, and intuitive local dimming.
Optional wireless control modules (LumenRadio CRMX) can be specified to simplify installation and enhance

operational convenience.

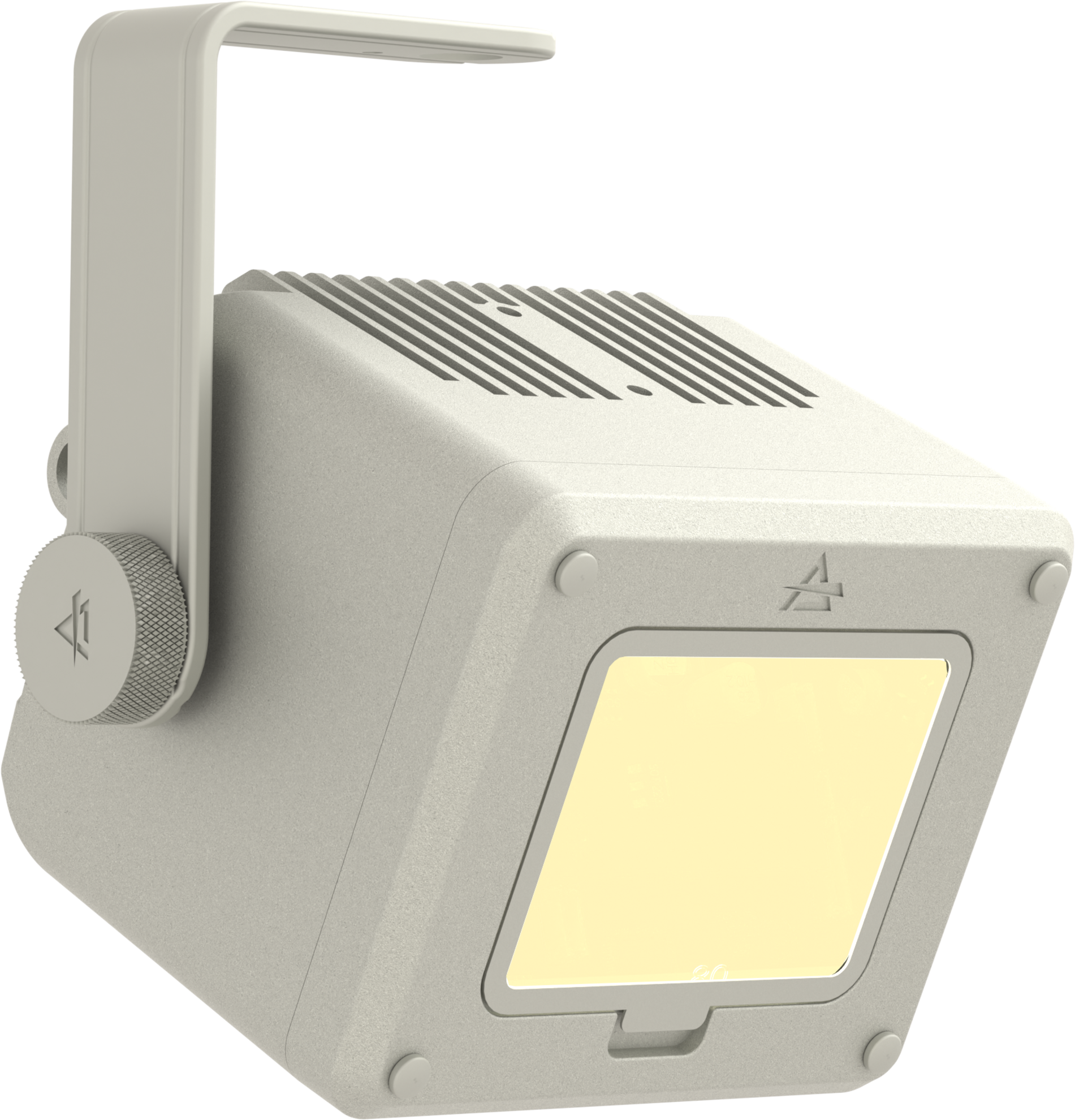

With its stylish cubic form factor, Gallery WashDAT integrates seamlessly into both contemporary interiors

and historic venues. The integrated power supply and driver facilitate straightforward installation, further

supported by an extensive range of accessories, including track adapters, adjustable yokes, ceiling mounting

kits, and optical modifiers such as barn doors, holographic filters, and snoots.

Main features:

60W Variable White linear LED engine offers dynamic color mixing and precision tunable white lighting
Custom asymmetrical reflector ensures superbly uniform wall illumination, minimizing fixture count and

installation complexity
Supports RDM, DMX, local knob dimming, and optional wireless protocols (CRMX) for flexible and

intuitive operation
Integrated power supply with extensive mounting accessories and optical modifiers enables quick

installation and precise customization for any venue

Technical Specifications

LIGHT SOURCE

Source: 60W Variable White LED
Luminous flux: 3'334lm @3.200 K; 3'809lm @5.600 K; 3'689lm @Full
Lux: 44lx @3.200 K; 49lx @5.600 K; 48lx @5 m full
CRI: 94,2 @3.200 K; 95,4 @5.600 K;
R9: 83 @3.200 K; 82 @5.600 K;
TLCI: 98 @3.200 K; 97 @ 5.600 K;
TM30 Rf: 94,4 @3.200 K; 91,9 @5.600 K;
TM30 Rg: 104,7 @3.200 K; 102,9 @5.600 K;
Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Beam angle: (VxH) 67°x117°
Additional optics: Smooth filter on-board - see available accessories

COLOUR SYSTEM

Colour mixing: tunable white
CCT: CCT control through dedicated DMX channel
White presets: 2'700K - 5'600K
Colour wheel: built-in white presets

DYNAMIC EFFECTS

Control Resolution: 16-bit dimmer, colours
Static mode: selection of static dimmer and color temperature

BODY

Body: aluminium die-casting

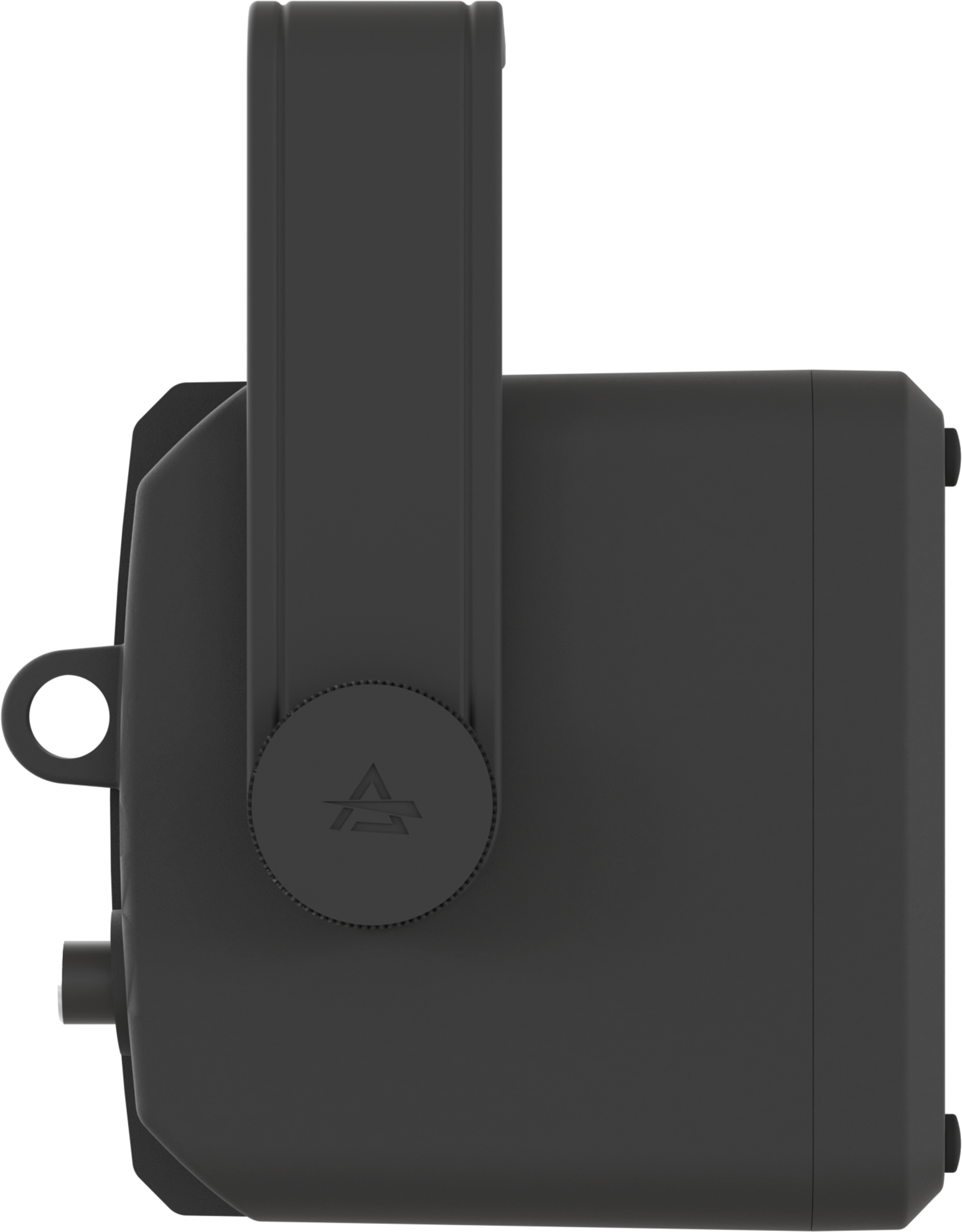

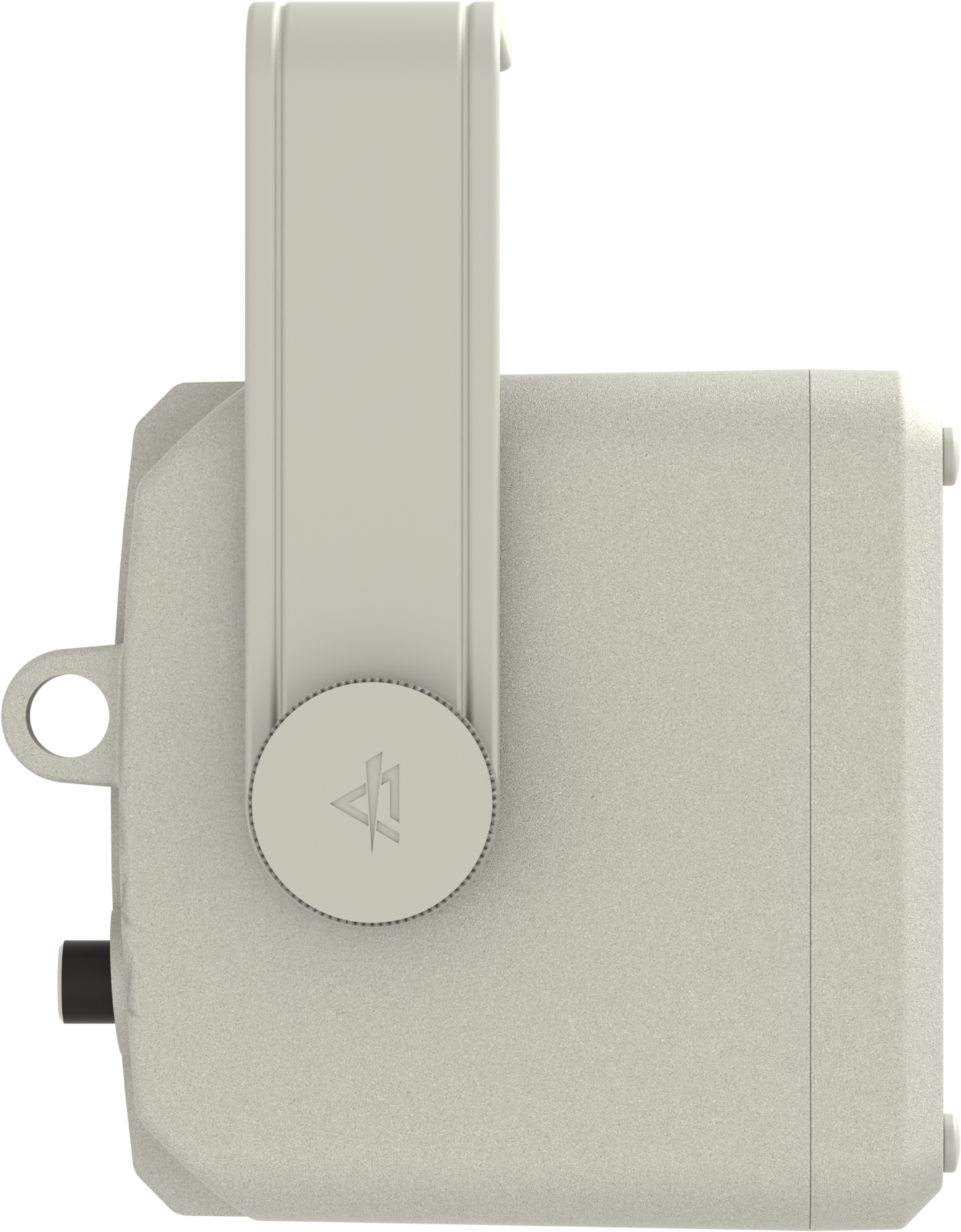

Body colour: RAL 9004 or RAL 9010
Other:

CONTROL

Protocols: Local Knob, DMX, RDM, CRMX (optional)
DMX channels: 1 / 2 / 4 / 10channel
Wireless Control: optional, LumenRadio TiMo receiver
RDM: RDM for remote monitoring and settings
Display: user interface through DATAMASTER external coder (not included)
Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: -10° ~ +45° Ta
LED Control: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 53W
Standby power: 1,3W
Power factor: > 0,95

PHYSICAL

IP rating: 20

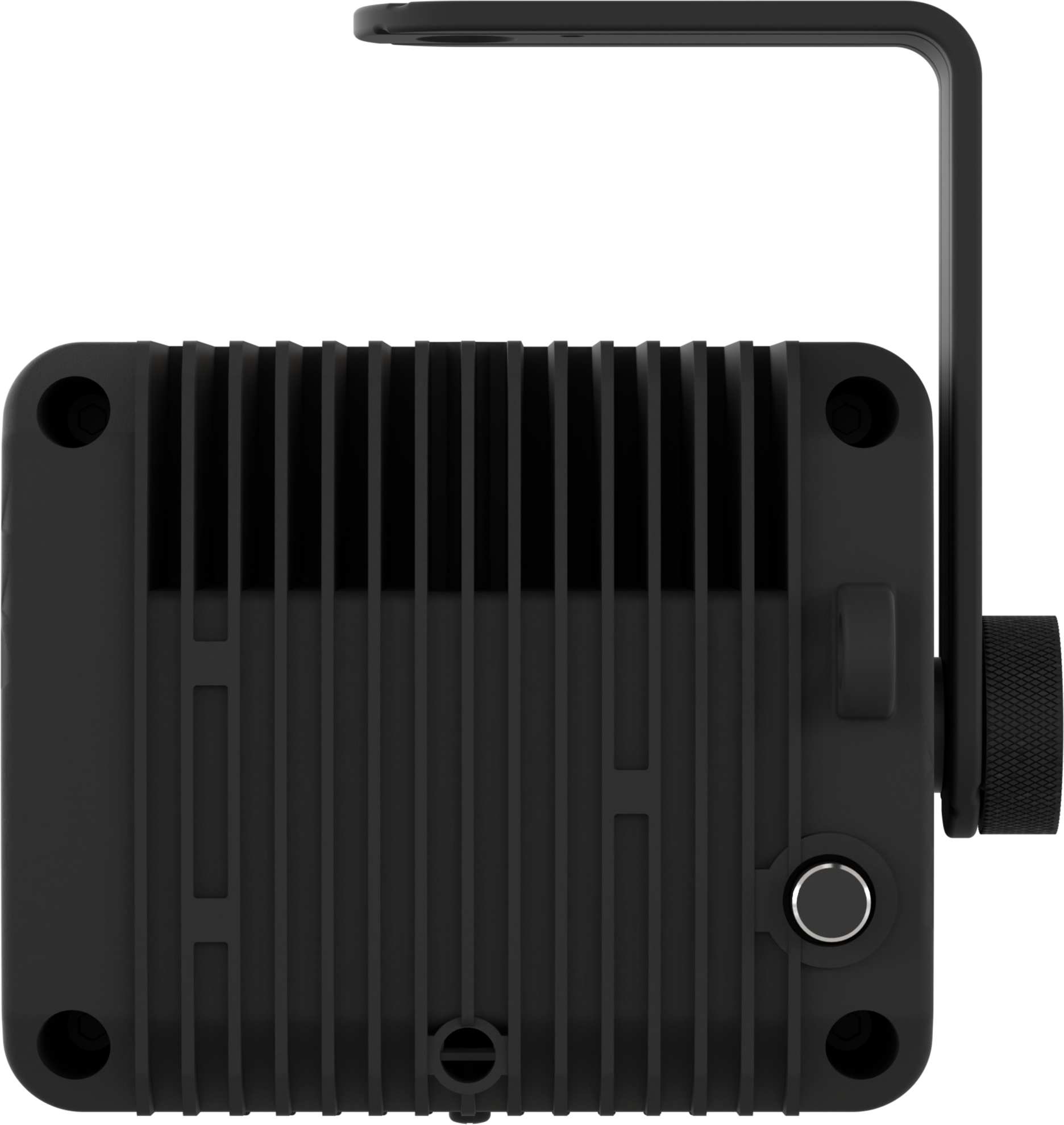

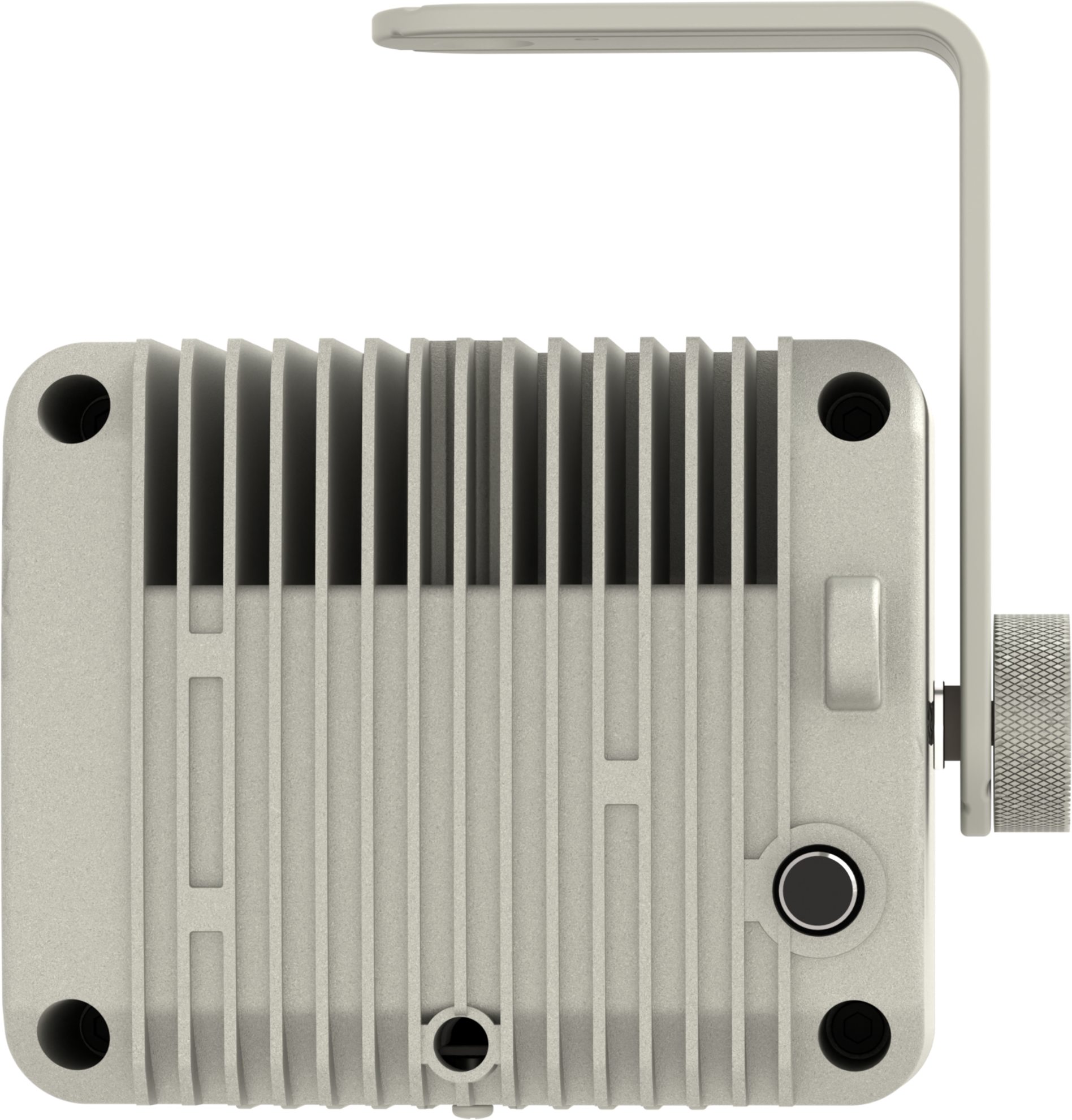

Cooling: fan-free projector with a chassis designed for natural convection cooling
Suspension and fixing: track / hanging / ceiling installation
Data connection: screw terminal blocks
Power connection: screw terminal blocks
Dimensions (WxHxD): 141x146x112mm / 5.55''x5.75''x4.41''
Weight: 1kg / 2.2lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, RCM, FCC, cTUVus

BOX CONTENT

1 x GALLERYWASHDATVW
1 meter cable with 3G0,75mmq power cable + 2x0,169 mmq DMX 120 Ohm (BARE END - already connected)
User Manual

Supplier SKU

GALLERYWASHDATVWB

Custom sticker

Optional CRMX
