Ecl Fresnel CT+S IP 200W 6 colors

Name: Ecl Fresnel CT+S IP 200W 6 colors
Brand: Prolights

530068040

200 W IP65 Led Fresnel with 6 color source, 150mm-6'' lens, black

Description Specification Brand information Downloads

EclFresnel CT+SIP is a 200W LED Fresnel, engineered with a new 6 colours light source and a 150mm / 6'' glass Fresnel lens. Being IP65 rated, the unit is both water and dust resistant ensuring safe application in any set or extreme locations, keeping lightweight and not scaling up in sizes.

The newly designed optical system allows a greater zoom range from 9° to 73°, keeping and high efficiency also at a narrow beam angle.

The Spektra calibrated light source delivers consistency in operations, higher luminous flux in both colours and whites CCT keeping a broader color space and richer light spectrum to achieve unprecedented values of CRI, TLCI and TM30.

Fixtures of the EclFresnel CT+ range brings more power in their processing unit, offering an ultimate user experience in terms of control of the light and colours and as well more intuitive stand alone operations through a larger display, backlight encoders, and advanced connectivity both wired and wireless.

Completed by a wide range of accessories including 8 leaf barndoors and P.O. bracket, the EclFresnel CT+ also performs silent, allowing to be the indispensable workhorse for Broadcast, Film and Theatre applications.

Technical Specifications

LIGHT SOURCE

Light source:

Proprietary source manufactured in Europe by PROLIGHTS
Source:

200
W

6 colour LEDs source
Luminous flux:

(9,7°) 1'922 lm - (73,5°) 4'795
lm

@4.000 K
Lux:

(9,7°) 2'270 lx - (73,5°) 286
lx

@5m @4.000 K
CRI:

96,6 @3.200K; 97 @5.600 K
R9:

87 @3200K; 96 @5.600 K
TLCI:

87 @3200K; 94 @5.600 K
TM30 Rf:

> 94 @3.200K; > 94 @5.600 K
TM30 Rg:

< 101 @3.200K; < 102 @5.600 K
Source life expectancy:

> 50.000 h

OPTICS

Zoom:

9,7° - 73,5
°

manual
Lens diameter:

6'' / 150
mm
Lens type:

Fresnel glass lens with AR coating
:

Glass Fresnel lens providing a classic light fall-off
Additional optics:

PC lens available as accessory
Other:

spigot, barndoor and gel frame included

COLOUR SYSTEM

Colour control:

XY, CCT, RGBW, Gel with Source Emulation, Tungsten emulation, HSI, User preset
Colour mixing:

6 colour LEDs source
CCT:

Linear CCT adjustment from 1.800 K-20.000K

BODY

:

Sliding bracket for adjustable weight balance
Hardware on-board:

filter frame, 8 doors barndoor, spigot
Body:

weatherproof IP65 construction with die-cast magnesium alloy
Body colour:

RAL 9004
Other:

Strengthened zoom movement system for enhanced durability and stability

CONTROL

Protocols:

DMX512, RDM, CRMX
Stand Alone:

4 pushable RGB backlit encoder
Wireless Control:

included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth capable
RDM:

RDM for remote monitoring and settings
Display:

2.4'' Color display
Firmware upgrade:

yes, via USB - DMX interface (UPBOXPRO) not included
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 ~ 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Operating temperature:

-20° ~ +45°
LED Control:

flicker free frequency with adjustable PWM
Selectable PWM:

600 ~ 40.000 Hz

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz
Low Voltage DC mains:

48V
Max power consumption:

200
W
Output (at 230V):

11

units on a single power line
Power factor:

> 0,94

PHYSICAL

IP rating:

65

for temporary outdoor use (*)
Cooling:

combination of heat pipe cooling system and low noise fan
Signal connection:

IP65

Seetronic XLR 5p IN/OUT connectors
Data connection:

IP65

WEIPU SF12 4P-F
Power connection:

Seetronic powerCON TRUE IP65 IN/OUT
Low Voltage DC connector:

XLR 3p for 48V

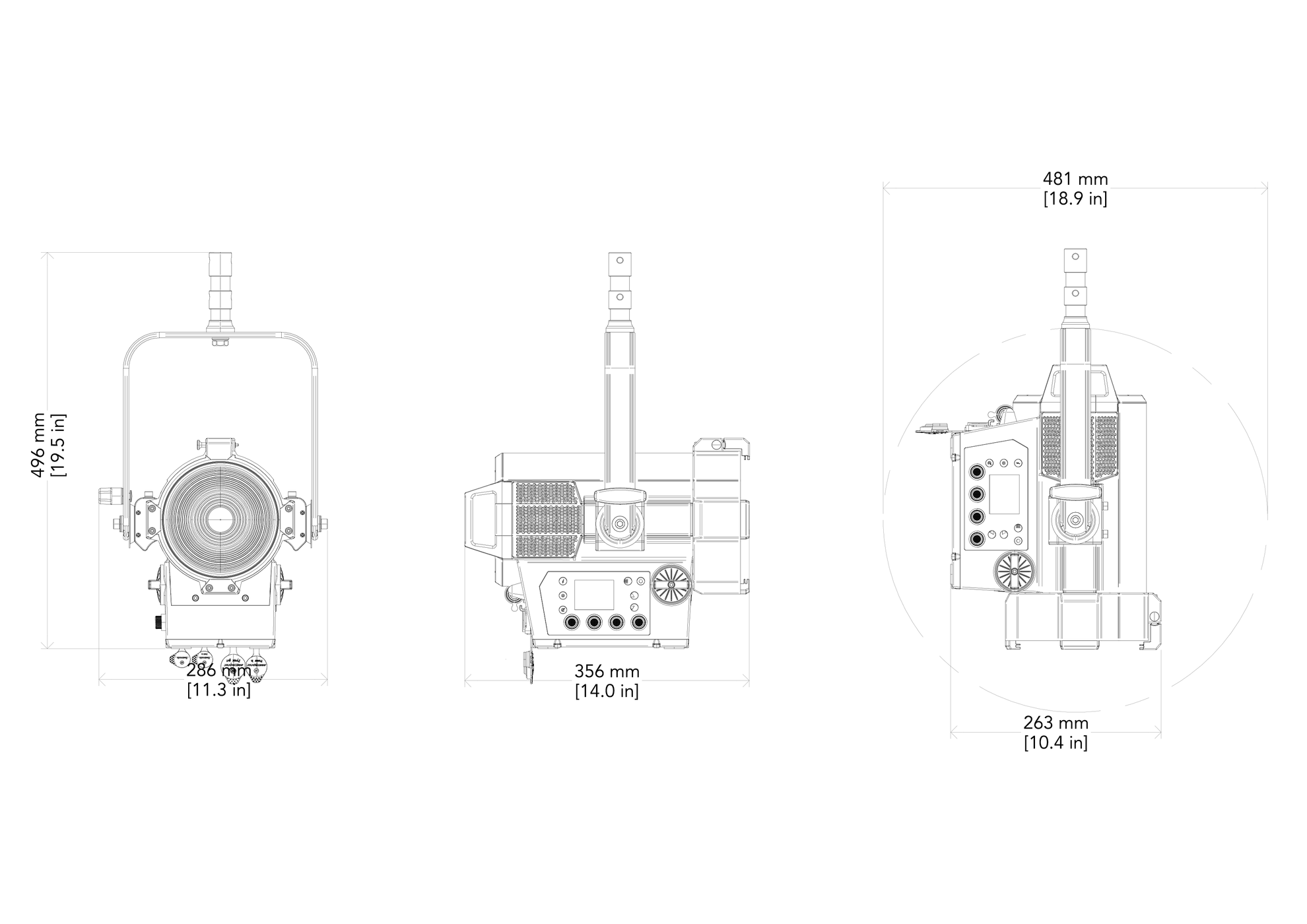

Dimensions (WxHxD):

286x513x356
mm
Weight:

7,6
kg

(*)

NOTE:

Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

CERTIFICATIONS / APPROVALS

Certifications / Approvals:

CE, RCM, cTUVus

Supplier SKU

ECLFRCTPSIPBK

Control sticker

CRMX

IP Rating

IP65
