DIGISTRIP IP 100 - Pixel-map LED bar L.100cm

DIGISTRIP IP 100 - Pixel-map LED bar L.100cm

Name: DIGISTRIP IP 100 - Pixel-map LED bar L.100cm
Brand: Prolights

530201200

Pixel-map LED bar, 100x0.25W LED RGB/FC, ArtNet 300ch, IP65,

Description Specification Brand information Downloads

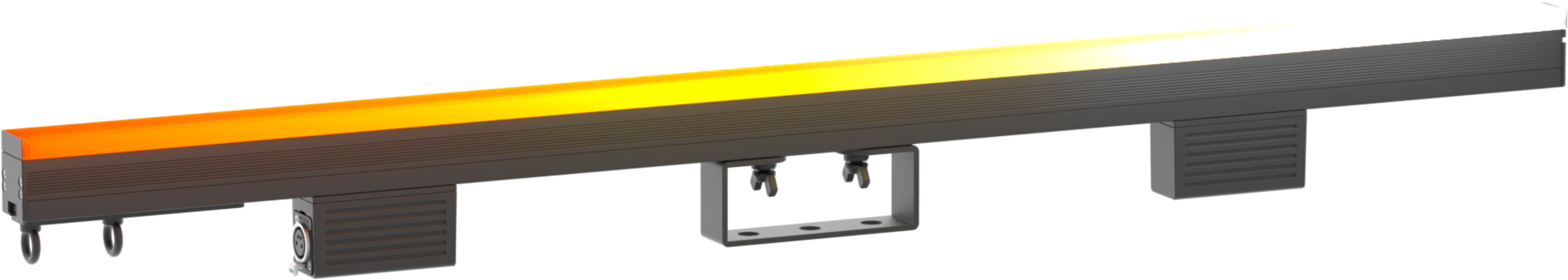

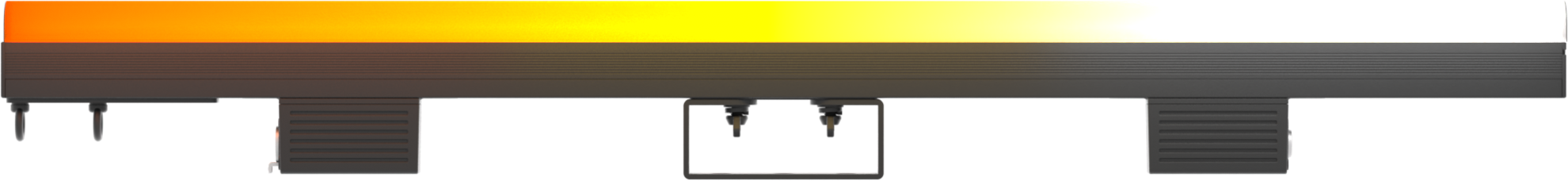

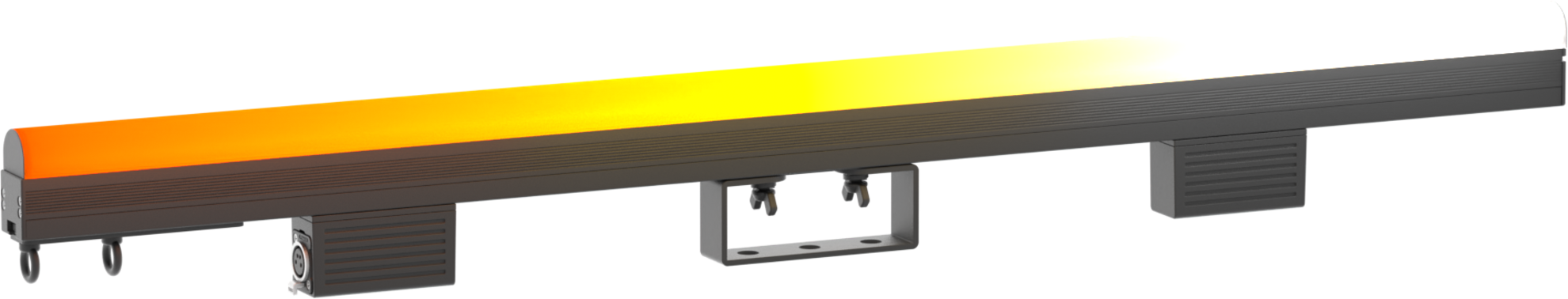

DigiStrip IP100 is a linear LED 10 mm pixel pitch video fixture for the rental market with an extensive range of optical accessories for a wide variety of looks (black and white and transparent). Each 1 meter long strip features 100 RGB / FC LEDs with individual pixel control and a 100° viewing angle. The mechanics of DigiStrip IP100 have been studied to grant greater mounting flexibility by adding sliding hardware on the back for truss application and on the side for multiple vertical linking. The external control unit DigiDriver IP is compatible with Art-Net and Kling-Net protocol and runs both signal and power over a 4 pole cable that provides greater stability and connection in a daisy chain (up to 20 DigiStrip IP100)

Technical Specifications

LIGHT SOURCE

Source: 100x0,25W RGB LEDs
Luminous flux: without cover: 542 lm - black cover: 81 lm - flat white cover: 319 lm - dome white cover: 351lm @full
Lux: without cover: 7 lx - black cover: 1 lx - flat white cover: 3 lx - dome white cover: 2lx @5 m full
Other: view angle 100° - driver chip MBI 5043
Source life expectancy: > 50.000 h

OPTICS

Pixel pitch: 10mm
Additional optics: black cover and white dome cover (included)
Other: flat white cover (included)

COLOUR SYSTEM

Colour mixing: RGB / FC

BODY

Hardware on-board: on board mechanics for modular assembly of multiple fixtures
Body: sturdy aluminum profile
Body colour: white optic and body black

CONTROL

Control units: 20 pcs power & signal under 1 pc DIGIDRIVERIP
Art-Net channels: 300ch
Protocols: Art-Net, Kling-Net, sACN
Pixel control: pixel2pixel control

ELECTRICAL

Mains power supply: DC 48V
Max power consumption: 25W

PHYSICAL

IP rating: 65 for temporary outdoor application, not for fixed installation
Suspension and fixing: bracket for truss rigging and hardware for connection of more units

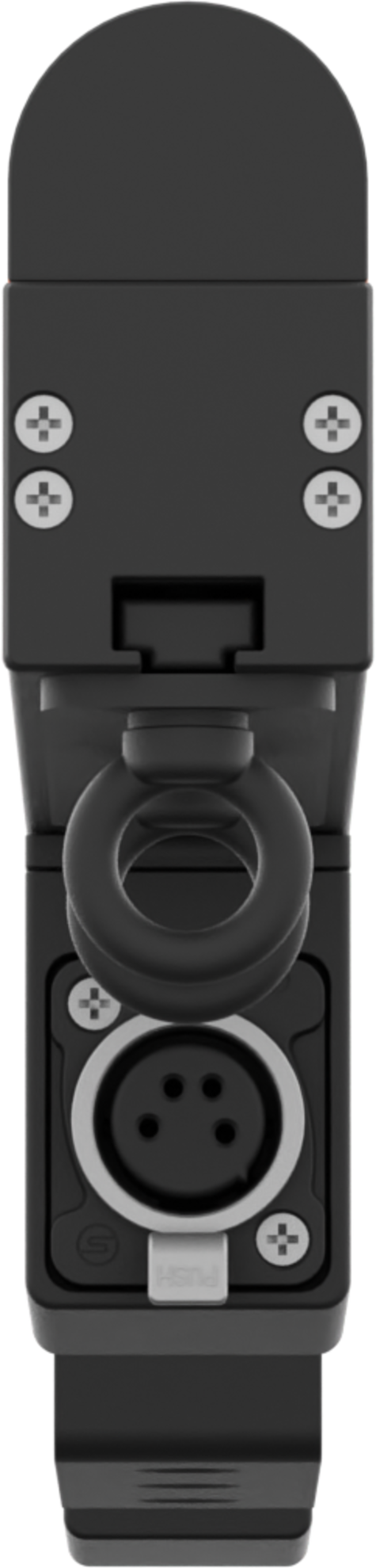

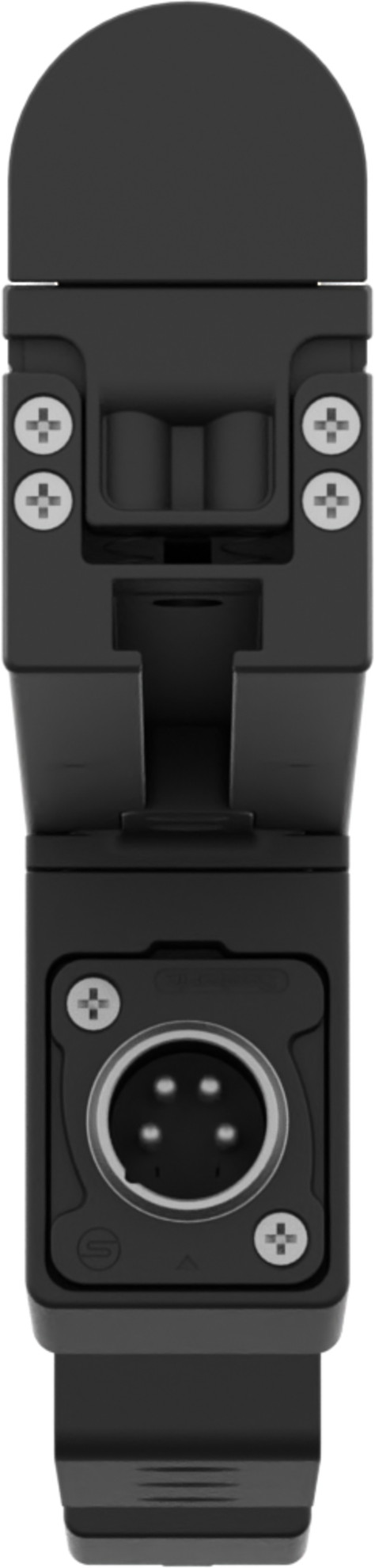

Signal connection: Seetronic XLR 4p IN/OUT connectors
Dimensions (WxHxD): 1.000x36x128mm
Weight: 2,7kg

Supplier SKU

DIGISTRIPIP100
